HL‑SFLEX110 110W Ultra‑Thin Flexible CIGS Solar Panel
The HELIST HL‑SFLEX110 uses CIGS thin‑film technology to redefine distributed PV and mobile energy with ultra‑thin, flexible, highly reliable power generation. At only 2mm thick and 2.4kg light—1/10 the weight of conventional crystalline silicon panels—it fits light‑load structures, curved roofs, vehicles, marine, building facades and fences perfectly.
Key Advantages
✅️ Higher Comprehensive Energy Yield
Excellent temperature coefficient: ~3% more power at high temperatures vs conventional panels
Superior low‑light performance: 1.5% higher in cloudy, diffuse light & high latitudes
No power decay in first 5 years with unique light‑bath effect
Overall generation >4.5% higher than traditional PV systems
✅️ Simplified Installation, 30% Lower BOS Cost
No racking base, no roof penetration
No extra wind load, no structural reinforcement
Conforms to curved & irregular roofs
Faster, safer, lower‑cost installation
✅️ Ultra‑Light & Ultra‑Thin, Light‑Load Friendly
Thickness: ≤2mm
Weight: 2.4kg±5% (no adhesive) / 3.1kg±5% (adhesive backed)
Weight as low as 3kg/㎡, ideal for steel & metal roofs, light‑duty buildings
✅️ High Safety & Low Maintenance
ETFE encapsulation (Water Cube grade), nano self‑cleaning
Hail resistant, no hot‑spot effect, built‑in bypass diodes
Operating temp: ‑40℃ to +85℃
Fire rating B1, Safety Class II, IP67 connectors
✅️ Long‑Term Warranty
Materials & workmanship: 1‑year warranty
Power warranty: 90% @10 years; 80% @25 years
Product Parameter
| Model | HL‑SFLEX110Pmax |
| Pmax | 110W (STC) |
| Voc | 44V |
| Vmpp | 34.8V |
| Isc | 3.8A |
| Impp | 3.2A |
| Temp coefficient Pmax | ‑0.36%/℃ |
| Cells | 64×CIGS cells |
| Dimensions | 2070×494×2mm |
| Cable | 4.0mm² double‑insulated PV cable, 1000VDC |
| Junction box | TE miniature, MC4 compatible, IP67 |
| Max system voltage | 1000V (IEC/UL) |
| Snow/wind load | ≤1600Pa |

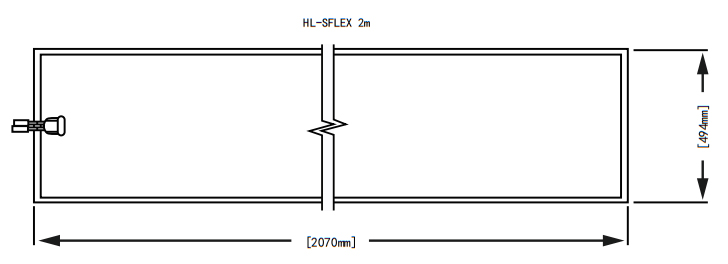

Dimension drawing
Applications
Buildings: steel roofs, metal roofs, factories, warehouses
Transport: RVs, yachts, trucks, marine vessels
Integration: fences, facades, off‑grid power, outdoor equipment
Environments: humid, salt‑spray, dusty, coastal, high‑latitude areas
Product Packaging
FAQ
Q1：Is the panel bendable? What is the maximum bending radius?
A：This is an ultra‑thin flexible module designed for curved surfaces such as curved roofs, irregular structures, boats, and carports. At only 2mm thick, it offers excellent conformability. Follow the installation manual for safe bending; avoid excessive bending to prevent cell damage.
Q2：Do I need racks, foundations, or roof drilling? Will it damage roof waterproofing?
A：No brackets, concrete foundations, or roof penetration are required. It supports adhesive bonding, pressure strips, and clamps – fully preserving roof integrity and eliminating leakage risks. It reduces BOS cost by about 30% for faster, safer installation.
Q3：Can it generate power efficiently in low light, cloudy days, dawn/dusk, or high latitudes?
A：Yes. CIGS performs exceptionally well in diffused and low irradiance. At 600W/㎡, relative efficiency reaches 101.5% — 1.5% higher than conventional modules. It maintains stable output in dawn, dusk, haze, cloudy, and high‑latitude conditions to boost annual yield.
Q4：What are the structural requirements for weight and load?
A：Weight: 2.4kg (without adhesive) / 3.1kg (with adhesive). Areal density as low as 3kg/㎡ — just 1/10 of traditional panels. No structural reinforcement is needed for light steel roofs, metal roofs, color steel tiles, old buildings, and light‑duty factories.
Q5：Can it operate long‑term in high/low temp, coastal salt spray, high humidity, or dusty areas?
A：Yes. Operating temperature: ‒40℃ to +85℃. ETFE encapsulation (Water Cube grade) provides salt‑spray resistance, corrosion protection, moisture/dust resistance, and hail impact resistance. Built‑in bypass diodes eliminate hot spots. Fire rating B1, Safety Class II, ideal for coastal, industrial, urban, and harsh environments.
Q6：Does the panel have hot‑spot effect? How is safety ensured?
A：No hot‑spot effect. Bypass diodes are integrated into each cell and junction box to prevent hot spotting under partial shading. This greatly improves safety, reliability, and service life.
Q7：What is the protection rating of the junction box, connectors, and cables?
A：TE miniature junction box with MC4 compatible connectors, IP67 rated. Cable: 4.0mm² double‑insulated PV cable, 1000VDC, UV‑resistant, aging‑resistant, and wide‑temperature suitable for long‑term outdoor use.
Why Choose HELIST HL‑SFLEX110 Flexible CIGS Solar Panel
HELIST specializes in high‑performance CIGS flexible solar technology, delivering higher efficiency, lighter weight, greater reliability, and easier operation for global customers. Choose HL‑SFLEX110 for stable long‑term power and lower total lifecycle cost.
-Advanced CIGS Technology, Higher Yield
Low temperature coefficient, excellent low‑light performance, 3% more power at high temp, 1.5% more in low light. Total yield 4.5%+ higher than traditional PV; zero decay in first 5 years.
-Ultra‑Thin & Flexible, Fits All Scenarios
Only 2mm thick, 2.4kg light, bendable for curved surfaces. Ideal for light roofs, RVs, boats, fences, facades.
-No‑Drill Installation, 30% Lower Cost
No racks, no drilling, no reinforcement, no extra wind load. Faster, safer installation; BOS cost reduced by 30%.
-Industrial‑Grade Durability for Extreme Environments
ETFE self‑cleaning, hail & salt‑spray resistant, ‑40℃~+85℃, IP67, B1 fire rating, no hot‑spot risk.
-25‑Year Power Warranty, Secure ROI
1‑year material & workmanship warranty; 90% power at 10 years, 80% at 25 years.
-Factory Direct + Full Technical Support
In‑house R&D and manufacturing, stable supply, best value. One‑stop support: design, installation, after‑sales.
