IFP81175200-300Ah LiFePO4 Battery Cell 3.2V High Safety Long Cycle Life Prismatic Lithium Ion Cell for ES & EV
Product Introduction
Core Selling Point
✅ Ultra-Long Cycle Life
Up to 6000 cycles at 1C (25℃) with 80% capacity retention, supporting 10-year calendar life for lower total cost of ownership.
✅ Automotive-Grade High Safety
LiFePO4 chemistry with stable structure. Passes overcharge, overdischarge, short circuit, crush, heating and temperature cycling tests – no fire, no explosion.
✅ Wide Temperature Adaptability
Discharge from -30℃ to 60℃, charge from -20℃ to 60℃. Stable output even in extreme cold and high-temperature environments.
✅ Low Internal Resistance & High Power Output
AC internal resistance 0.1–0.3mΩ, DC internal resistance ≤0.4mΩ. Supports 1.5C fast charge and 3C pulse discharge with low heat generation.
✅ Stable & Consistent Performance
Strict factory screening ensures excellent voltage and capacity consistency, ideal for series-parallel module and PACK assembly.
✅ Standardized Dimensions for Easy Integration
Prismatic aluminum case with fixed mechanical size, easy to arrange, assemble and automate mass production.
✅ High Energy Density
Gravimetric energy density ≥186Wh/kg, volumetric energy density ≥410Wh/L, delivering high energy in compact space.
✅ Eco-Friendly & Globally Compliant
RoHS and EU Battery Directive compliant, free of heavy metals, fully recyclable and suitable for global markets.
Technical Specifications
| Item | Specification |
| Model | IFP58200225‑330Ah |
| Case Material | Aluminum |
| Battery System | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Capacity | 330Ah (1C) |
| Nominal Voltage | 3.2V |

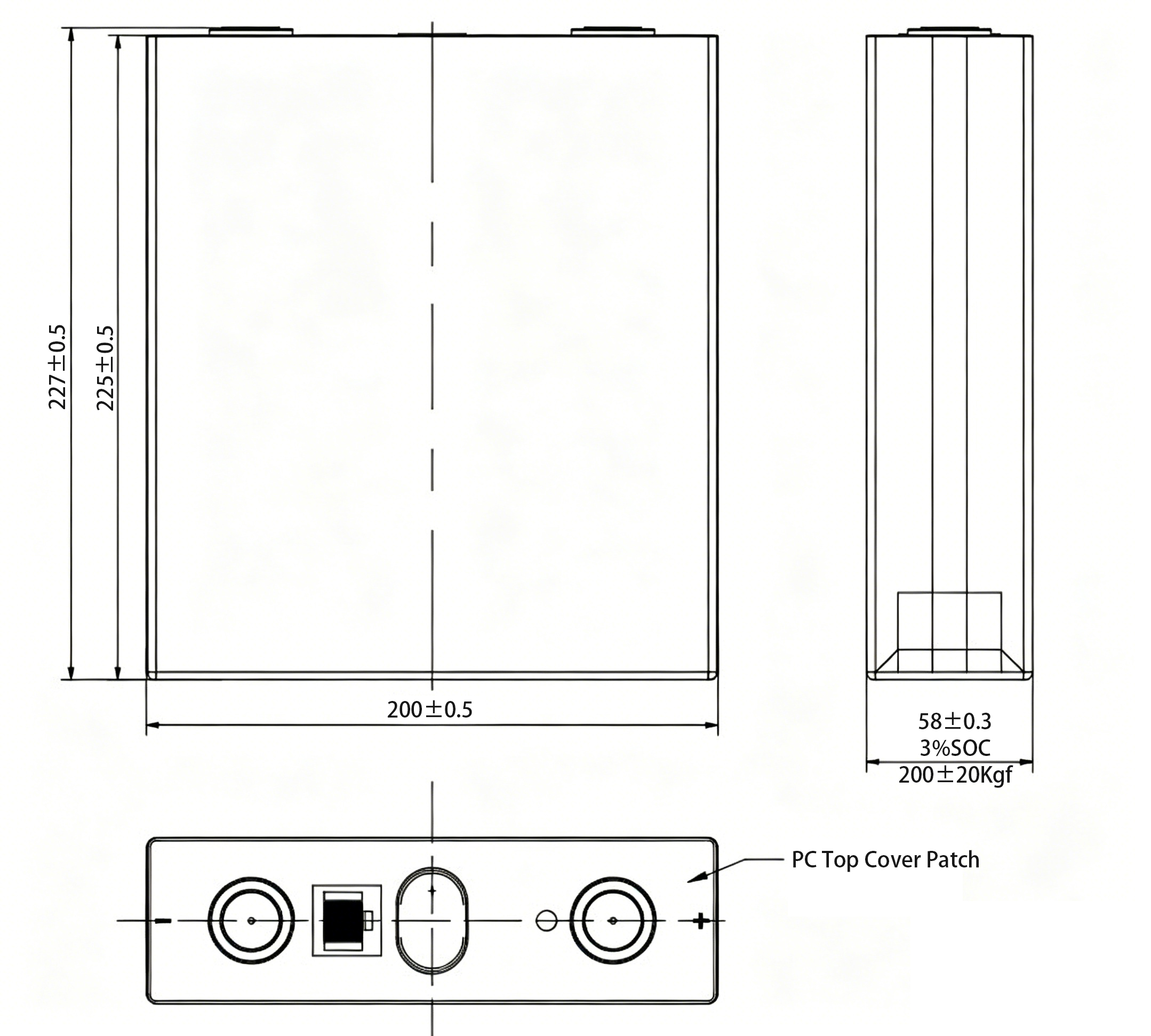

| Cell Dimensions (D*H) | Thickness: 58±0.3 mm (including outer film, 5%±3% SOC, 200±20 kgf) Width: 200±0.5 mm (including outer film) Height: 225±0.5 mm (excluding terminals)/ 227.6±0.5 mm(with terminals) |
| Cycle Life | 6000 cycles (80% capacity retention) |
| Operating Temp (Charge) | -20~60℃ |
| Operating Temp (Discharge) | -30℃ ~ 60℃ |
| Weight | 5746g±172g |
Remark：The dimensions are shown in millimeters（mm）
Application Scenario
Relying on the core advantages of small size, lightweight and high power, this specification is precisely suitable for the following scenarios, covering multiple power/energy storage fields:
-Light electric vehicles: Low-speed electric vehicles, electric scooters, electric bicycles, electric motorcycles, small volume for easy installation, high power to meet power demand
-Portable energy storage equipment: Outdoor portable power supplies, small emergency energy storage boxes, lightweight + fast charging, suitable for outdoor mobile use
-Small industrial/civil equipment: Electric tools, small robots, security backup power supplies, instantaneous high current output, suitable for high-frequency start-stop of equipment
-On-board auxiliary power supply: Car emergency start power supply, on-board low-power energy storage, wide temperature range to adapt to the complex environment inside the car
-Small smart home backup power: Smart door locks, monitoring equipment, small home appliance backup power, high stability to meet long-term floating charge demand
Packaging and Transportation
Packaging：Original anti-static packaging, external carton protection, to avoid mechanical damage during transportation; each cell is marked with a clear bar code for traceability.
Transportation：Complies with UN38.3 transportation standards, strict prohibition of violent loading and unloading, prevent severe vibration, impact and extrusion, avoid sun and rain.
FAQ
Q: Do I need to use a fixture or apply pressure when installing?
A: Yes. This cell requires fixed compression during module assembly. The recommended assembly pressure is 150±50 kgf, and the maximum allowable pressure is 600 kgf to ensure stability and service life.
Q: Can I install this cell with other models or brands?
A: No. Mixing different models, capacities, or brands will cause imbalance, overheating, and accelerated aging. Only use identical cells in the same battery system.
Q: How long does it take to fully charge this battery cell?
A: At 1.5C fast charge (495A), it takes about 40–50 minutes to reach full capacity. At 0.5C standard charge (165A), it takes about 2.5 hours. Charging time varies slightly with temperature.
Q: Can this cell work normally in cold winter conditions?
A: Yes. It supports discharge down to ‑30°C and charging down to ‑20°C. Capacity retention remains above 85% at ‑20°C and 80% at ‑30°C, ensuring stable performance in low‑temperature environments.
Q: Can I connect multiple cells in series or parallel for a battery pack?
A: Yes, series and parallel connections are supported for battery system integration. A professional BMS (Battery Management System) is required for voltage balancing, current protection and temperature monitoring. Do not mix new and old cells.
Q: Is this cell safe for daily commercial and industrial use?
A: Yes. It uses high‑stability LiFePO4 chemistry and passes overcharge, overdischarge, short circuit, crush, heating and temperature cycling tests. It is designed to be non‑flammable and non‑explosive under normal and abusive conditions.
Q: What is the correct way to store the cell when not in use?
A: Keep the cell at 30%–50% SOC, store in a cool, dry, ventilated environment with temperature below 35°C and humidity ≤85%. It is recommended to perform a full charge‑discharge cycle every 3 months to maintain cell performance.
Q: What applications is this cell most suitable for?
A: It is widely used in electric vehicles, energy storage systems, UPS backup power, telecom base stations, engineering machinery, marine power and other industrial and commercial scenarios requiring high reliability and long life.
