IFP54173145-150Ah 3.2V LiFePO4 Prismatic Battery Cell for EV & Energy Storage
Product Introduction
The IFP54173145‑150Ah is a prismatic LiFePO4 power cell designed and manufactured by Hefei Gotion exclusively for electric vehicles, power battery systems, residential & commercial energy storage, RVs, and special power supplies. Adopting the mature and stable LFP chemistry, it is developed in strict compliance with international and domestic power battery standards including GB/T 31484, GB 38031, and IEC62619.
Centered on high safety, long cycle life, wide temperature range, large capacity, low degradation, and excellent consistency, it serves end‑users and system integrators pursuing long‑term stable performance, high reliability, and superior safety.
Core Selling Point
✅️Automotive‑Grade Ultra‑High Safety for Home & Business
Adopting the stable LiFePO4 (LFP) chemistry, this cell passes six strict safety tests: overcharge, over‑discharge, external short circuit, heating, crushing, and temperature cycling. It complies with automotive safety standards including GB 38031 and IEC 62660‑2‑2018, with no fire, explosion, or leakage. It minimizes safety risks for home storage, RVs, EV power, and industrial backup power, ensuring safe operation 24/7
✅️Extra Long Cycle & 10‑Year Calendar Life for Lower Cost
The cell supports 3000 deep cycles at 25℃ (≥80% capacity retention), 1500 cycles at 45℃, and 800 cycles at 55℃, with a long 10‑year calendar life. It greatly reduces replacement and maintenance costs. More durable and cost‑effective than standard cells, it delivers superior long‑term value.
✅️Ultra‑Wide Temperature Range: -30℃ to 60℃ for All Climates
Operating range: 0~60℃ for charging, -30~60℃ for discharging. Outstanding low‑temp performance: ≥75% capacity at -30℃, ≥80% at -20℃, ≥90% at 0℃; ≥95% capacity at 55℃ high temp. Stable output in cold winters, hot summers, highlands, and industrial high‑heat environments, with no power loss or downtime.
✅️Real 150Ah Capacity, Stable & Strong Power Delivery
Genuine 150Ah nominal capacity with no exaggeration. Delivers 496Wh at 0.33C discharge and 472.5Wh at 1C high‑rate discharge, with a steady voltage platform and low voltage drop. Provides reliable power for EV range, energy storage, RVs, and industrial equipment, avoiding fake capacity issues.
✅️Ultra‑Low Internal Resistance for Fast Charge & High Pulse
AC internal resistance 0.2~0.3mΩ, DC internal resistance ＜1.0mΩ, enabling lower heat, higher efficiency, and strong high‑current capability. Supports step fast charging and high power pulse discharge, with faster response and shorter charging time. Ideal for EV acceleration and energy storage pulse feedback.
✅️Original Gotion High Consistency, Easy PACK Assembly

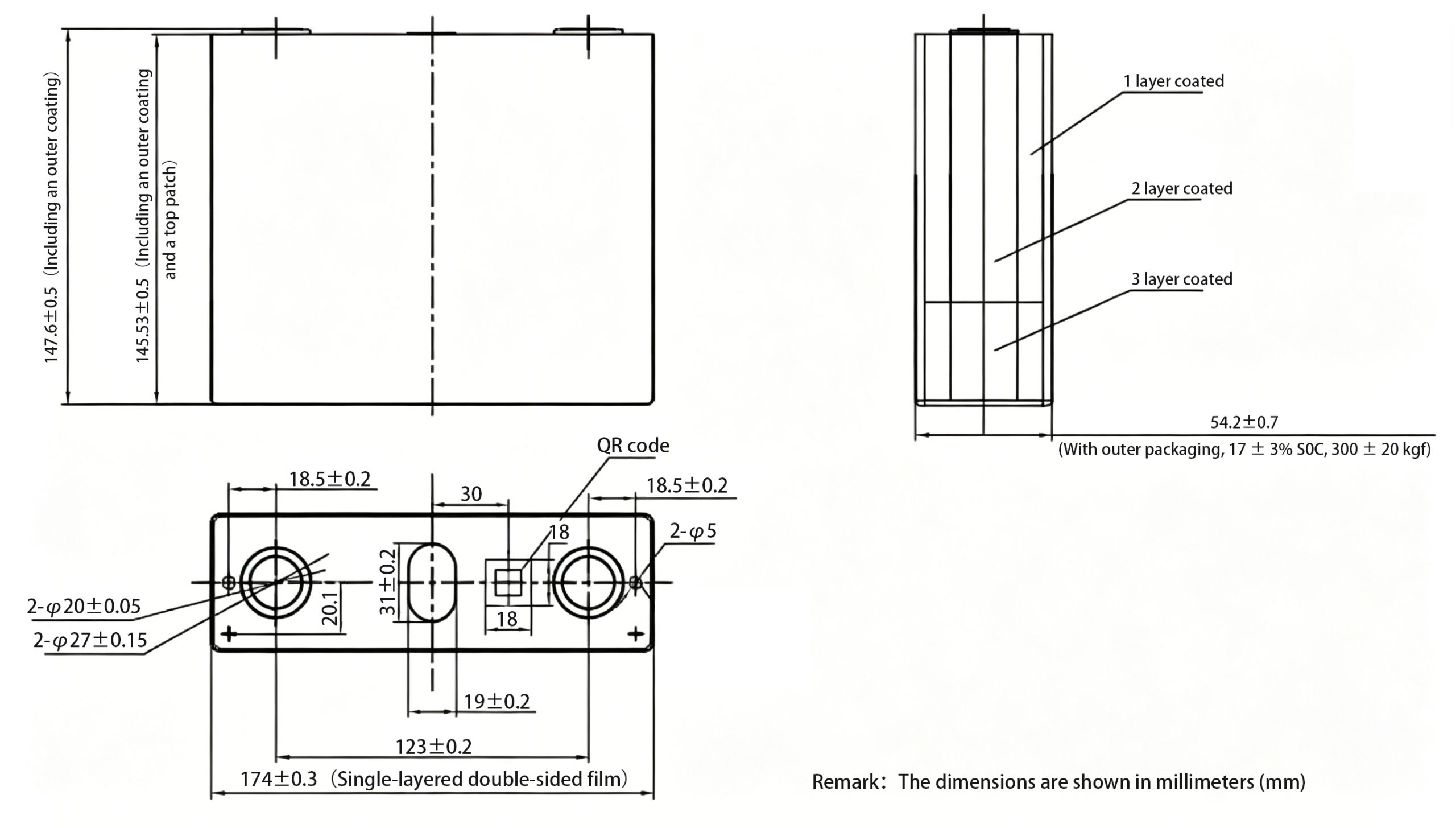

Manufactured on Gotion’s standardized production lines, with excellent consistency in capacity, resistance, voltage, and dimensions: thickness 54.2±0.7mm, width 174±0.5mm, height 147.6±0.5mm (with terminals). Easy module and pack integration with recommended fixture pressure, BMS thresholds, and fast charge logic, lowering assembly difficulty and defect rates.
✅️High Energy Density: Smaller, Lighter, Longer Runtime
Gravimetric energy density 175Wh/kg, volumetric energy density 353Wh/L. More compact and lighter than similar‑capacity cells. Improves EV range and reduces weight; saves space for energy storage systems and boosts energy per unit volume.
Technical Specifications
| Item | Specification |
| Model | IFP54173145-150Ah |
| Case Material | Aluminum |
| Battery System | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Capacity | 150Ah |
| Nominal Voltage | 3.2V |
| Cell Dimensions (D*H) | Thickness：(54.2±0.7)mm（including outer film thickness, 17%±3%SOC, 300±20kgf）
Width：(174±0.5)mm（including outer film thickness） Height：(145.53±0.5)mm（including outer film thickness and excluding terminals） Height：(147.6±0.5)mm（including outer film thickness and terminals） |
| Cycle Life | 3000 cycles (80% capacity) |
| Operating Temp (Charge) | 0℃~60℃ |
| Operating Temp (Discharge) | -30℃ ~ 60℃ |
| Weight | 2816g±84g |
Application Scenario
Relying on the core advantages of small size, lightweight and high power, this specification is precisely suitable for the following scenarios, covering multiple power/energy storage fields:
-Light electric vehicles: Low-speed electric vehicles, electric scooters, electric bicycles, electric motorcycles, small volume for easy installation, high power to meet power demand
-Portable energy storage equipment: Outdoor portable power supplies, small emergency energy storage boxes, lightweight + fast charging, suitable for outdoor mobile use
-Small industrial/civil equipment: Electric tools, small robots, security backup power supplies, instantaneous high current output, suitable for high-frequency start-stop of equipment
-On-board auxiliary power supply: Car emergency start power supply, on-board low-power energy storage, wide temperature range to adapt to the complex environment inside the car
-Small smart home backup power: Smart door locks, monitoring equipment, small home appliance backup power, high stability to meet long-term floating charge demand
Packaging and Transportation
Packaging：Original anti-static packaging, external carton protection, to avoid mechanical damage during transportation; each cell is marked with a clear bar code for traceability.
Transportation：Complies with UN38.3 transportation standards, strict prohibition of violent loading and unloading, prevent severe vibration, impact and extrusion, avoid sun and rain.
FAQ
Q: Is this battery cell brand new original Grade A? Is it used, refurbished, or old stock?
A: We only sell brand-new original Grade A cells from Gotion High-Tech. 100% new, non-used, non-refurbished, non-B-grade, non-expired stock. All cells fully meet the original factory specifications.
Q: How about cell consistency? Will there be large voltage differences in series or parallel?
A: Manufactured on Gotion’s standardized production lines with excellent consistency in capacity, resistance and voltage. With qualified BMS and standard assembly, voltage difference remains small and stable for long-term use.
Q: Is this cell safe for home energy storage and RV applications? Any fire risk?
A: Adopts automotive-grade LiFePO4 chemistry. Passes 6 strict safety tests: overcharge, over-discharge, short circuit, heating, crushing and temperature cycling. No fire, no explosion, no leakage.
Q: What is the recommended max charge voltage and min discharge voltage for daily use?
A: Standard max charge voltage: 3.65V. Discharge cut-off: 2.5V (above 0℃), 2.0V (below 0℃). Over-voltage or under-voltage will shorten cycle life.
Q: What is the maximum working temperature? Can it be used in hot summer environments?
A: Charge temperature: 0~60℃. Discharge temperature: -30~60℃. Recommended long-term working temperature below 55℃. Ensure ventilation in high-temperature conditions.
Q: Does this cell support fast charging? What is the maximum safe charging current?
A: Supports step-type fast charging. Up to 1C (150A) at 20~40℃. Charging current varies with temperature. Long-term full-power fast charging is not recommended.
Q: How many cycle life? How long can it be used for home energy storage?
A: Up to 3000 cycles at 25℃ (80% capacity remaining), 10-year calendar life. For home storage, it can work stably for more than 8 years.
Why Choose Our Gotion IFP54173145-150Ah Battery Cell?
-We only supply original, traceable, high-consistency power cells.
-Direct from Gotion factory: No refurbished or used cells
-100% tested per specification: Capacity, resistance, cycle life guaranteed
-Safety first: Passed all strict safety tests
-Full tech support: PACK design, BMS settings, fixture pressure, fast charge strategy
-Stable supply & fast after-sales
Reliable in winter, safe in summer, long-lasting, cost-effective for 10+ years.
