IFP53148115-106Ah Prismatic LiFePO4 Battery Cell | High Safety
Product Introduction
IFP53148115-106Ah is a prismatic LiFePO4 power cell manufactured by Gotion High-Tech. Adopting stable LFP chemistry, it features 106Ah high capacity, 3.2V nominal voltage, 178Wh/kg energy density, -30℃~60℃ operating temperature range and 3C fast charging. It passes six strict safety tests with no fire or explosion risk, reaching automotive-grade safety level.
With up to 3000 long cycles and 10-year calendar life, this cell has low internal resistance and stable output. It is widely used in home energy storage, EV power, outdoor power stations, industrial backup power, AGV robots and engineering machinery, providing excellent durability, reliability and cost-performance for both power and energy storage applications.
Core Selling Point
✅️Military-Grade Safety
Stable LiFePO4 chemistry with 6 safety certifications. No fire, no explosion, no leakage even in high temp, low temp, crush or impact conditions. Safe for home, EV and outdoor use.
✅️Ultra-Long Cycle Life
Up to 3000 cycles at 1C, 2000 cycles at 2.5C fast charge. Over 8 years lifespan with 1 cycle per day. Much longer than ordinary lithium batteries.
Wide Temperature Performance
Discharge: -30℃~60℃
Charge: -20℃~55℃
≥80% capacity retention at -30℃. Works stably in cold north & hot south, no sudden power loss.
✅️3C High-Power Fast Charge
Supports 3C continuous charge at 25℃. Step charging strategy adjusts current intelligently. Fast, low heat, no serious life loss.
✅️Ultra-Low Internal Resistance
ACR: 0.2~0.5mΩ, DCR＜1.0mΩ. Low loss, stable high-power output, ideal for EV acceleration, inverter loading and motor starting.
✅️Standard Size, Easy to Assemble

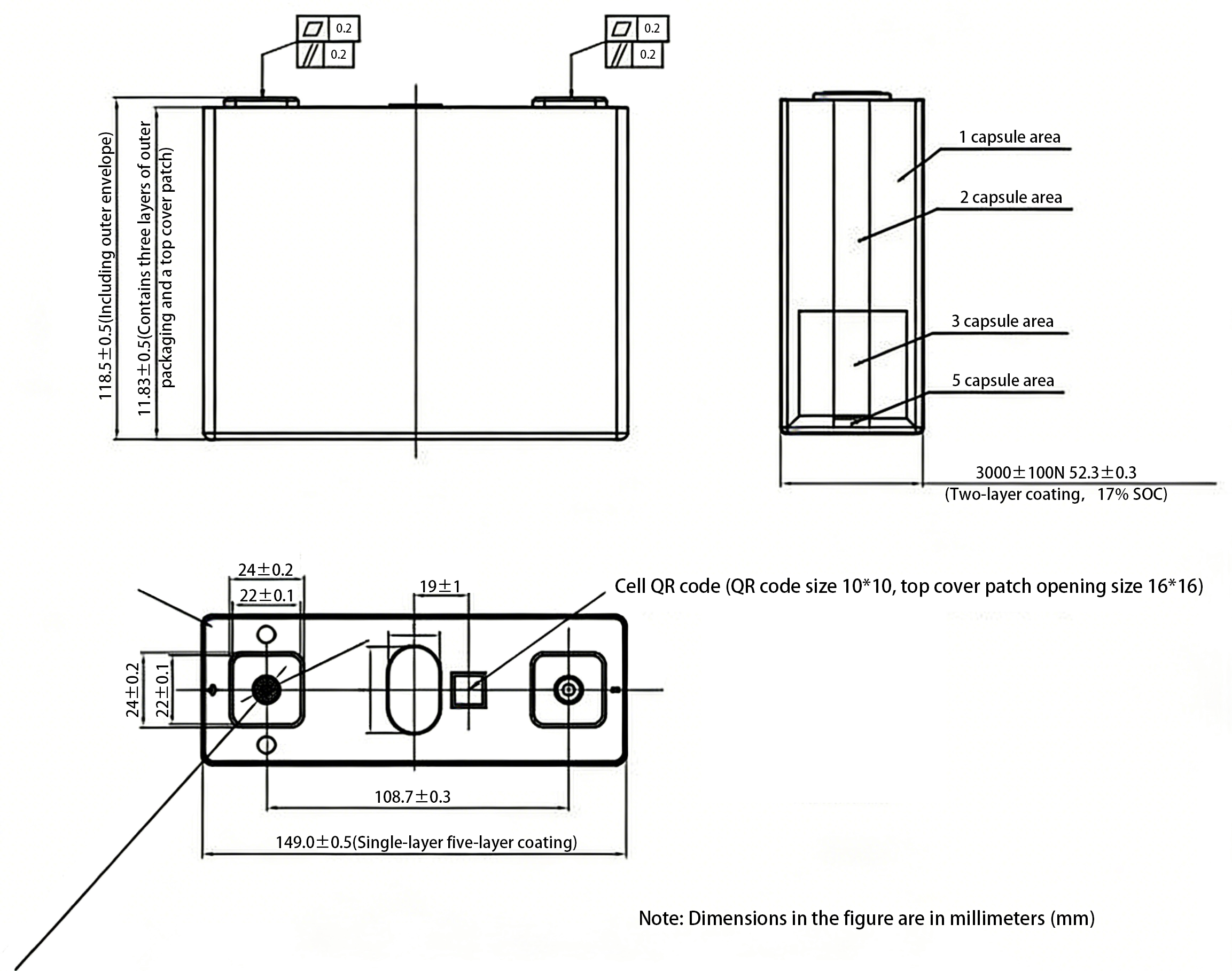

Thickness 52.3±0.3mm, width 148.6~149.0mm, height 118.9mm. Easy to series/parallel into modules and packs for home storage, EV, outdoor power and industry.
Technical Specifications
| Item | Specification |
| Model | IFP53148115-106Ah |
| Case Material | Aluminum |
| Battery System | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Capacity | 106Ah(0.33C)/104Ah(1C) |
| Nominal Voltage | 2.5V~3.65V(T>0℃); 2.0V~3.65V(T≤0℃) |
| Cell Dimensions (D*H) | Thickness：52.3±0.3mm
Width：149.0±0.5mm Height：(115.83±0.5)mm（including outer film thickness and excluding terminals） |
| Cycle Life | 3000 cycles |
| Operating Temp (Charge) | -20℃~55℃ |
| Operating Temp (Discharge) | -30℃ ~ 60℃ |
| Weight | 1935g±50g |
Application Scenario
Relying on the core advantages of small size, lightweight and high power, this specification is precisely suitable for the following scenarios, covering multiple power/energy storage fields:
-Light electric vehicles: Low-speed electric vehicles, electric scooters, electric bicycles, electric motorcycles, small volume for easy installation, high power to meet power demand
-Portable energy storage equipment: Outdoor portable power supplies, small emergency energy storage boxes, lightweight + fast charging, suitable for outdoor mobile use
-Small industrial/civil equipment: Electric tools, small robots, security backup power supplies, instantaneous high current output, suitable for high-frequency start-stop of equipment
-On-board auxiliary power supply: Car emergency start power supply, on-board low-power energy storage, wide temperature range to adapt to the complex environment inside the car
-Small smart home backup power: Smart door locks, monitoring equipment, small home appliance backup power, high stability to meet long-term floating charge demand
Packaging and Transportation
Packaging：Original anti-static packaging, external carton protection, to avoid mechanical damage during transportation; each cell is marked with a clear bar code for traceability.
Transportation：Complies with UN38.3 transportation standards, strict prohibition of violent loading and unloading, prevent severe vibration, impact and extrusion, avoid sun and rain.
FAQ
Q1: Is it safe for home energy storage?
A1: Yes, very safe. LiFePO4 chemistry with 6 safety certifications. No fire or explosion even in overcharge, short circuit or high temperature.
Q2: Can it work in very cold winter?
A2: Yes. Discharge at -30℃ (≥80% capacity), charge at -20℃. Stable in cold areas like Northeast China.
Q3: How long is 3000 cycles?
A3: 3000 cycles = over 8 years with 1 full cycle per day. For home storage (use every 2 days), it can last over 10 years.
Q4: Can I assemble my own battery pack?
A4: Yes. Important notes:
① Keep assembly pressure 300±20kgf;
② Insulate well to avoid short circuit;
③ Keep voltage 2.5V–3.65V;
④ Use BMS for safety.
Q5: Does fast charging hurt the cell?
A5: No. This cell is optimized for fast charge. 2.5C fast charge still reaches 2000 cycles. Safe with step charging.
Q6: What can this cell be used for?
A6: It is an EV-grade power cell suitable for:
Home energy storage
Electric vehicles
Outdoor power stations
Industrial backup power
One cell for almost all high-power applications.
Why Choose Our Gotion IFP27175200A-105Ah Battery Cell?
-Genuine Gotion Original Cell
Direct from Gotion production line, B-sample quality, 1:1 to datasheet. No refurbished, no fake capacity.
-Top Performance, High Cost-Effective
3C fast charge, 3000 cycles, -30℃ wide temp, matching OEM car-level quality at better price.
-Full Safety & Certifications
Complies with GB 38031, IEC 62660-2, RoHS. No heavy metals, eco-friendly & safe.
-Complete Technical Support
We provide:
PACK assembly pressure (300±20kgf)
Charge voltage/current/temp rules
Safety alarm thresholds
-SOC-OCV & DCR data
Fixture & welding suggestions
Full guidance from selection to assembly.
Stable Supply & After-Sales
Mass production, on-time delivery, technical support & troubleshooting for all customers.
