IFP27175200A‑105Ah Prismatic LiFePO4 Battery Cell | For EV & Energy Storage
Product Introduction
Gotion IFP27175200A-105Ah is a high-performance prismatic LiFePO4 power and energy storage cell. Built with stable LFP chemistry, it delivers excellent safety, ultra-long cycle life, and wide temperature adaptability for electric vehicles, home energy storage, commercial ESS, RVs, electric ships, and industrial machinery.
This 105Ah high-capacity cell features low internal resistance, high charging/discharging efficiency, and stable high-current output. It retains over 70% capacity at -30℃ and operates normally up to 60℃, performing reliably in both cold and hot environments.
Core Selling Point
✅️Military‑Grade Safety for Home & Vehicle
IFP27175200A‑105Ah uses stable LiFePO4 chemistry with excellent thermal stability, no fire, no explosion, no leakage even in crush, short, heat or puncture tests. It fully passes 6 strict EV safety tests: overcharge, over‑discharge, short circuit, 130℃ heating, crushing, and thermal cycle. Compliant with GB 38031, IEC 62660‑2, it is ultra‑safe for home energy storage, RVs and electric vehicles.
✅️3000+ Cycles & 10‑Year Calendar Life
Under 25℃, 0.5C charge /1C discharge, the cell reaches over 3000 cycles with ≥80% capacity retention. It delivers 1000 cycles at 45℃ and 800 cycles at 55℃. For daily home storage use, it lasts 8–10 years, much longer than ordinary lithium batteries. Longer life means lower replacement cost and higher long‑term value.
✅️ Ultra‑Wide Temperature Range: -30℃~60℃
Engineered for extreme environments:
Discharge: -30℃ ~ 60℃\Charge: 0℃ ~ 60℃
Real performance:
≥80% capacity at -20℃ \ ≥70% capacity at -30℃ \ ≥95% capacity at 55℃
It works reliably in cold northeast China, hot southern regions, outdoor ESS, vehicles and machinery.
✅️Ultra‑Low Internal Resistance for Stable High‑Rate Output
ACR: 0.4~0.6mΩ, DCR ≤1.5mΩ. Low resistance brings 3 key benefits:
Stable high‑rate discharge (up to 5C pulse for 10s)
Lower heat generation & higher safety
Higher energy efficiency & longer runtime
Ideal for vehicle acceleration, high‑power inverter and heavy‑duty equipment.
✅️105Ah High Capacity & High Energy Density
Nominal capacity 105Ah, nominal voltage 3.18V. 167Wh/kg gravimetric density and 365Wh/L volumetric density lead in its class. Slim prismatic design (27.2mm thick) improves packing density and heat dissipation, delivering more power in less space and weight.
✅️Automotive‑Grade Consistency for Easy Pack Assembly
Produced with high‑precision automation, the cell has excellent voltage, resistance and capacity consistency for series/parallel connection. It reduces BMS difficulty and improves pack life. Standard prismatic shape is easy to stack and cool, widely used in EVs, RVs, home ESS, commercial storage, solar systems and electric ships.
✅️100% Original Grade A Cell – No Refurbished, No Downgraded
We supply genuine factory Grade A new cells, 100% matching datasheet specs. Each batch is strictly screened for capacity, resistance, voltage and self‑discharge. No refurbished, no downgraded, no mixed capacity. Support sample test and batch inspection for stable, traceable quality.
Technical Specifications
| Item | Specification |
| Model | IFP27175200A‑105Ah |
| Case Material | Aluminum |
| Battery System | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Capacity | 105Ah |
| Nominal Voltage | 3.18V（0.33C）/3.12V（1C） |

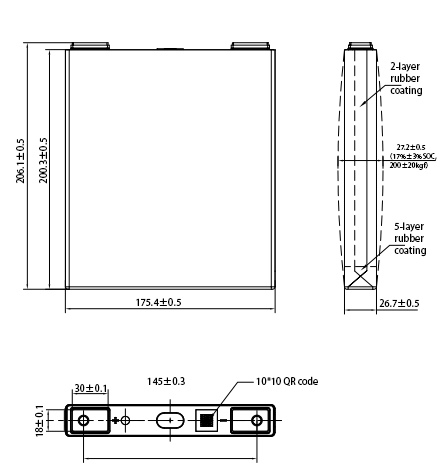

| Cell Dimensions (D*H) | Thickness：27.2±0.5mm
Width：175.4±0.5mm Height：200.3±0.5mm |
| Cycle Life | 3000 cycles |
| Operating Temp (Charge) | 0℃~60℃ |
| Operating Temp (Discharge) | -30℃ ~ 60℃ |
| Weight | 2060g±50g |
Remark：Thedimensionsareshowninmillimeters(mm)

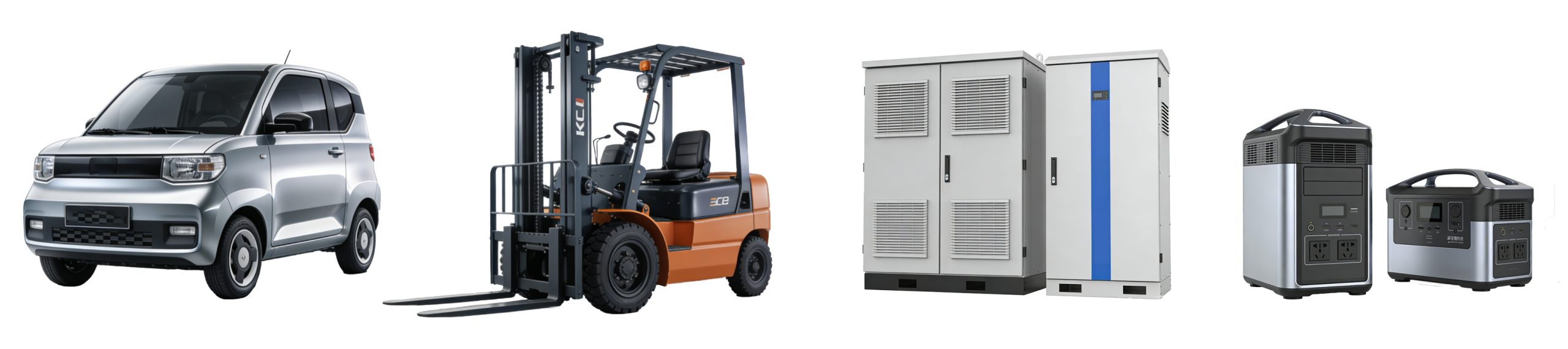

Application Scenario
Relying on the core advantages of small size, lightweight and high power, this specification is precisely suitable for the following scenarios, covering multiple power/energy storage fields:
-Light electric vehicles: Low-speed electric vehicles, electric scooters, electric bicycles, electric motorcycles, small volume for easy installation, high power to meet power demand
-Portable energy storage equipment: Outdoor portable power supplies, small emergency energy storage boxes, lightweight + fast charging, suitable for outdoor mobile use
-Small industrial/civil equipment: Electric tools, small robots, security backup power supplies, instantaneous high current output, suitable for high-frequency start-stop of equipment
-On-board auxiliary power supply: Car emergency start power supply, on-board low-power energy storage, wide temperature range to adapt to the complex environment inside the car
-Small smart home backup power: Smart door locks, monitoring equipment, small home appliance backup power, high stability to meet long-term floating charge demand

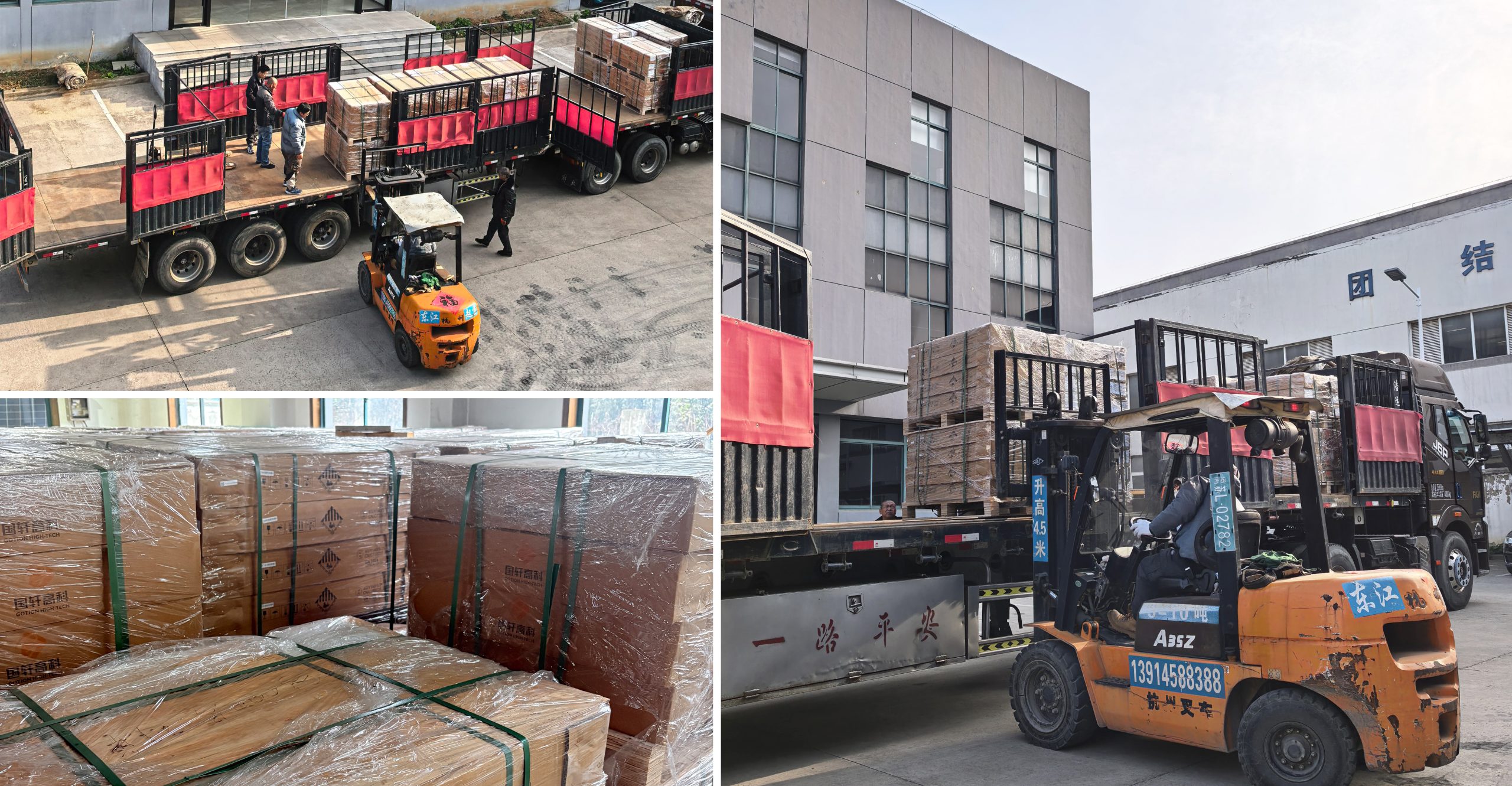

Packaging and Transportation
Packaging：Original anti-static packaging, external carton protection, to avoid mechanical damage during transportation; each cell is marked with a clear bar code for traceability.
Transportation：Complies with UN38.3 transportation standards, strict prohibition of violent loading and unloading, prevent severe vibration, impact and extrusion, avoid sun and rain.
FAQ
Q1: What is this cell mainly used for? Can it be used for home energy storage?
A: Yes. This 105Ah LiFePO4 cell works perfectly for EVs, logistics vehicles, construction machinery, and is also ideal for residential ESS, commercial storage, solar systems, RVs, and electric ships with high safety and long life.
Q2: Is it really safe? Will it catch fire or explode?
A: Extremely safe. With LiFePO4 chemistry, it passes strict tests including overcharge, over-discharge, short circuit, heating, crushing, and thermal cycle. No fire, no explosion for home and vehicle use.
Q3: Can it work in cold winter? Does it discharge at -30℃?
A: Yes. It supports an ultra-wide temperature range of -30℃~60℃. Capacity remains ≥80% at -20℃ and ≥70% at -30℃, stable even in cold regions.
Q4: How long is the service life? How many years can it last?
A: Over 3000 cycles at room temperature and up to 10 years calendar life. For daily home use, it can last 8–10 years, much longer than ordinary lithium batteries.
Q5: How fast can it charge? How to charge safely?
A: Supports standard slow charge + step fast charge. 0.5C daily charge extends life; current is limited automatically at high/low temp. Follow datasheet for safest use.
Q6: What should I note when assembling a battery pack myself?
A: Use a qualified BMS to limit charge to 3.65V and discharge above 2.0V. Recommended assembly pressure: 150±50kgf. Insulate well to avoid short circuits. We provide full setup guidance.
Q7: Are they brand new? Any refurbished cells?
A: We only supply brand new Grade A original cells, 100% matched to official specs. No refurbished, no downgraded, no mixed capacity. Test reports are available.
Why Choose Our Gotion IFP27175200A-105Ah Battery Cell?
Genuine Original Cell Guarantee
Direct from factory, brand new Grade A cells, 100% compliant with datasheet specs, no refurbished, downgraded or mixed capacity.
Extreme Safety Design
Stable LiFePO4 olivine structure, excellent thermal stability, full EV safety tests passed; no fire or explosion in nail, crush or short tests.
Ultra‑Long Life Performance
3000+ cycles at room temperature, 10‑year calendar life, lower total cost of ownership.
Wide Temperature Adaptability
Stable from -30℃ to 60℃, reliable in extreme cold & heat, ideal for outdoor & vehicle use.
Professional Engineering Support
Full supporting docs including BMS thresholds, charge/discharge profiles, Pack pressure & fixture design.
Stable Supply & After‑Sales
Strict QC, high consistency, support sample, batch & full container orders, fast technical & after‑sales response.
