Gotion IFP27175200A-100Ah High-Power LFP Lithium-Ion Cell
Product Introduction
IFP27175200A-100Ah Lithium-Ion Rechargeable Cell is a prismatic LFP (Lithium Iron Phosphate) battery independently developed by HEFEI Gotion. It is manufactured in strict compliance with national standards such as GB/T 31484-2015, GB 38031-2020 and international standards of IEC.
With a nominal capacity of 100Ah, the product features four core advantages: high energy density, wide temperature adaptability, ultra-long cycle life and excellent safety performance. It can be widely used in electric vehicles (EV), energy storage systems (ES) and other fields, providing stable, efficient and reliable power support for various equipment.
Core Selling Point
✅️Ultra-High Energy Density：Weight energy density up to 163Wh/kg and volume energy density 346Wh/L, providing stronger endurance under the same weight and volume, effectively saving installation space.
✅️Wide Temperature Adaptability：Discharge temperature range covers -30℃~60℃, maintaining ≥70% initial capacity at low temperature (-30℃) and ≥95% capacity retention rate at high temperature (55℃), adapting to various extreme climate conditions.
✅️Ultra-Long Service Life：Room temperature cycle life up to 6000 cycles, high temperature cycle life 2500 cycles, and calendar life up to 15 years, significantly reducing usage costs and replacement frequency.
✅️Excellent Safety Performance：Passed 9 rigorous safety tests including overcharge, over discharge, short circuit, drop, crush and thermal runaway, all meeting the standard of “no explosion, no fire”. Built-in BMS failure threshold protection for safer use.
✅️Environmental Compliance Certification：Strictly complies with EU RoHS 2.0 standard, the content of 10 restricted substances is lower than the limit requirement, in line with 2006-66-EC battery directive, green and pollution-free.
✅️Flexible Charging Strategy：Supports regular slow charging (15℃≤T<45℃, 50.0A constant current + 3.65V constant voltage) and step fast charging (different charging currents adapted to different temperatures), meeting diverse usage needs.
Technical Specifications
| Item | Specification |
| Model | IFP27175200A-100Ah |
| Case Material | Aluminum |
| Battery System | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 3.18V (0.33C) / 3.12V (1C) |

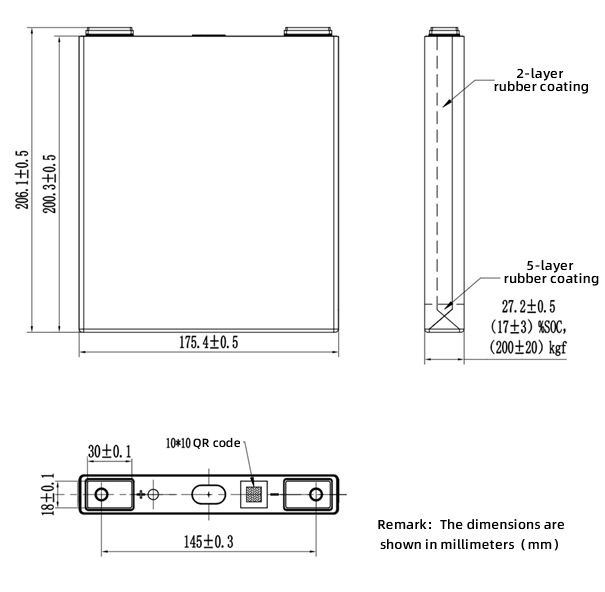

| Cell Dimensions (D*H) | Thickness：(27.2±0.5)mm（including outer film thickness, 17%±3%SOC, 200±20kgf）
Width：(175.4±0.5)mm（including outer film thickness） Height：(200.3±0.5)mm（ including outer film thickness and excluding terminals） (206.1±0.5)mm（including outer film thickness and terminals） |
| Cycle Life | 6000 cycles |
| Operating Temp (Charge) | 0℃~60℃ |
| Operating Temp (Discharge) | -30℃ ~ 60℃ |
| Weight | 1125g±35g |
Application Scenario
Relying on the core advantages of small size, lightweight and high power, this specification is precisely suitable for the following scenarios, covering multiple power/energy storage fields:
-Light electric vehicles: Low-speed electric vehicles, electric scooters, electric bicycles, electric motorcycles, small volume for easy installation, high power to meet power demand
-Portable energy storage equipment: Outdoor portable power supplies, small emergency energy storage boxes, lightweight + fast charging, suitable for outdoor mobile use
-Small industrial/civil equipment: Electric tools, small robots, security backup power supplies, instantaneous high current output, suitable for high-frequency start-stop of equipment
-On-board auxiliary power supply: Car emergency start power supply, on-board low-power energy storage, wide temperature range to adapt to the complex environment inside the car
-Small smart home backup power: Smart door locks, monitoring equipment, small home appliance backup power, high stability to meet long-term floating charge demand
Packaging and Transportation
Packaging：Original anti-static packaging, external carton protection, to avoid mechanical damage during transportation; each cell is marked with a clear bar code for traceability.
Transportation：Complies with UN38.3 transportation standards, strict prohibition of violent loading and unloading, prevent severe vibration, impact and extrusion, avoid sun and rain.
FAQ
Q1: What are the application scenarios of IFP27175200A-100Ah cell?
A: The cell is mainly suitable for electric vehicles (EV) and energy storage systems (ES), and can also be applied to new energy equipment, emergency power supplies and other scenarios requiring high-capacity, long-life power batteries according to actual needs.
Q2: What are the charging methods of the cell? What are the requirements for charging current at different temperatures?
A: Supports two charging methods: regular slow charging and step fast charging. Regular slow charging conditions: 15℃≤T<45℃, 50.0A constant current charging to 3.65V then switching to constant voltage charging, cut-off current 5.0A; step fast charging requires adjusting charging current according to ambient temperature, specific parameters refer to Appendix A.1 Step Charge Table (Charging is not allowed below 0℃).
Q3: What is the performance of the cell in low temperature environment?
A: The cell has excellent low-temperature discharge capacity, with capacity retention rate ≥80% at -20℃ and ≥70% at -30℃, meeting the usage requirements in cold regions. It is recommended to adjust the cut-off voltage to 1.8V during low-temperature discharge to avoid over-discharge affecting battery life.
Q4: How to properly store unused cells?
A: When not in use for a long time, store the cell in a cool and dry place (temperature ≤35℃, ambient humidity ≤85%ROH, no condensation), maintain 30%-50% SOC during storage, and perform charge-discharge maintenance every 3 months to avoid battery performance degradation.
Q5: What are the safety test standards for the cell?
A: The cell has passed 9 safety tests including overcharge, over discharge, short circuit, drop (1.5m height), crush (13±0.78kN), heating (130±2℃), low pressure (11.6kPa), thermal runaway and temperature cycle. All tests meet the requirements of “no explosion, no fire, no leakage”.
Q6: Can new cells be mixed with old cells?
A: It is not recommended to mix use. There are differences in performance parameters such as capacity, internal resistance and cycle times between new and old cells. Mixed use will lead to unbalanced charge and discharge, accelerate battery degradation, and even cause potential safety hazards. It is recommended to use cells of the same batch and same state in the Pack.
Why Choose Our Gotion IIFP27175200A-100Ah Battery Cell?
Original Factory Direct Supply Guarantee：Authorized direct sales by HEFEI GOTION HIGH-TECH, products are fully produced in accordance with Q/GX033-2023 enterprise standards. Each cell undergoes strict quality inspection to ensure consistency with specification parameters, rejecting refurbished and inferior products.
Authoritative Standard Certification：Product R&D and production refer to multiple national and international standards such as GB/T 31484-2015, GB 38031-2020, IEC62619-2017, passed RoHS environmental certification, reliable quality, meeting global market access requirements.
Professional Technical Support：Provide complete technical documents (including specification, step charge table, SOC-OCV data, etc.), professional engineer team available 24/7 to answer technical questions, offering full guidance for Pack design, installation and commissioning.
Comprehensive After-Sales Service：Enjoy original factory warranty service, free return and exchange for quality issues; provide long-term technical upgrade consulting to ensure optimal performance of products throughout their life cycle.
Large-Scale Production Capacity：As a leading power battery enterprise in China, GOTION HIGH-TECH has large-scale production capacity, capable of stable supply of bulk orders, supporting customized needs with guaranteed delivery cycle.
