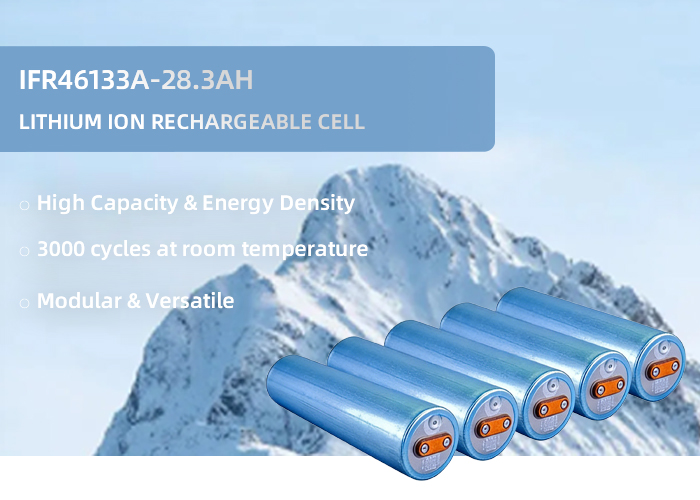

IFR46133A-28.3Ah Aluminum Shell LiFePO4 Cell – Gotion Original
Product Introduction
With the rapid development of the new energy power and energy storage industry, equipment has increasingly stringent requirements for the capacity, service life, environmental adaptability and safety of power sources, and high-performance lithium battery cells have become the core support for various devices. As a leader in China’s power battery field, Hefei Gotion has launched the IFR46133A-28.3Ah LiFePO4 cylindrical power cell with profound technical accumulation and strict quality control.
Integrating the advantages of large capacity, long cycle, wide temperature range and high safety, it is suitable for new energy power, energy storage, electric tools and other scenarios, providing stable and efficient power solutions for industrial and commercial applications, and is the preferred power cell.
Core Selling Point
✅ Genuine Original Factory Product：Produced by Hefei Gotion Hi-Tech, compliant with national power battery standards such as GB/T 31484-2015 and GB 38031-2020, certified by the first edition of original factory specification, with controllable quality.
✅High Capacity & High Energy Density：Nominal capacity 28.3Ah (0.33C), gravimetric energy density 175Wh/kg, volumetric energy density 409Wh/L, with excellent energy output efficiency.
✅Long Cycle Life：Cycle life up to 3000 times at 80% SOH (25℃ normal temperature), 1500 times at 80% SOH (45℃ high temperature), long service life and lower usage cost.
✅Excellent High & Low Temperature Performance：Discharge temperature range -30℃~60℃, 1C discharge capacity retention rate ≥75% at -20℃ low temperature, high temperature discharge capacity not lower than nominal value at 55℃, suitable for multi-environment use.
✅High Rate Charge & Discharge：Maximum continuous discharge current 4C, maximum pulse discharge current 14.5C (10s), fast charge from 10% to 80% SOC in only 20 minutes at 25℃, with fast charge-discharge response.
✅High Safety Performance：Passed multiple safety tests such as overcharge, overdischarge, short circuit, extrusion, heating and low air pressure, no explosion, no fire, no leakage, safer to use.
✅Low Self-discharge Rate：Self-discharge rate ≤3% when stored at 100% SOC for 28 days at 25℃, ≤2% at 50% SOC for 28 days, with excellent charge retention capacity.
Technical Specifications
| Item | Specification |
| Model | IFR46133A-28.3Ah |
| Cathode Material | LiFePO4 |
| Material | Aluminum |
| Voltage | 3.20V |
| Capacity | 28.3Ah |
| Operating Temperature | Charging: -20℃~55℃;
Discharging: -30℃~60℃ |
| Normal Temperature Cycle Life | 3000 cycles @80% SOH |
| Dimensions (w/o film) | Diameter 46.0±0.2mm;
Height 133.0±0.2mm (without terminal) / 135.5±0.3mm (with terminal) |
| Weight (w/o film) | 517g±5g |
Application Scenario
Energy Storage Systems: Home energy storage, industrial energy storage, portable energy power supply;
Electric Vehicles: Low-speed electric vehicles, electric motorcycles, electric forklifts, AGV carts;
Industrial Equipment: Base station backup power supply, UPS uninterruptible power supply, portable industrial equipment;
Other Scenarios: Solar street lights, outdoor power supply, power supply for model aircraft / model boats.
Packaging and Transportation
Packaging：Original anti-static packaging, external carton protection, to avoid mechanical damage during transportation; each cell is marked with a clear bar code for traceability.
Transportation：Complies with UN38.3 transportation standards, strict prohibition of violent loading and unloading, prevent severe vibration, impact and extrusion, avoid sun and rain.
FAQ
Q1: What is the fast charging performance of this cell?
A: At 25℃, it only takes 20 minutes to fast charge from 10% to 80% SOC. Corresponding charging rates are adapted to different temperature ranges, balancing charging efficiency and safety.
Q2: What is the cycle life of the cell?
A: At 25℃ (100%DOD), the SOH remains ≥80% after 3000 cycles; at 45℃ high temperature (100%DOD), the SOH is ≥80% after 1500 cycles, which greatly reduces the total life cycle cost.
Q3: What is the C-rate charge and discharge capability of the cell?
A: Maximum continuous discharge current: 4C; maximum pulse discharge current: 14.5C (10s). The 2C discharge capacity retention rate is ≥95% at 25℃, which can meet the demand for high-power instantaneous output.
Safety & Storage
Q4: What safety guarantees does this cell have?
A: It has passed a series of rigorous tests including overcharge, overdischarge, short circuit, extrusion, impact and low air pressure, complying with GB 38031-2020 and UN38.3-2021 standards. The test results show no explosion, no fire and no leakage.
Q5: What is the self-discharge rate of the cell, and what are the requirements for long-term storage?
A: At 25℃, the self-discharge rate is ≤3% when stored at 100% SOC for 28 days, and ≤2% when stored at 50% SOC. Unopened cells should be stored in a dry environment with a temperature of -10℃~30℃ and relative humidity ≤75%, and recharged every 2 months.
Q6: What are the internal resistance indicators of the cell?
A: At 25℃ and 50% SOC, the AC internal resistance is ≤1.1mΩ, and the DC internal resistance is 2.8mΩ (5C/10s). The low internal resistance design effectively reduces heat generation during charging and discharging and avoids the risk of thermal runaway.
Application & After-sales
Q7: Is the cell a genuine original factory product, and is there any quality assurance?
A: It is directly supplied by Hefei Gotion Hi-Tech with the original factory specification, complying with national power battery standards and without middlemen. We promise ten times compensation for fake products, and can provide actual photos for inspection before delivery.
Q8: What is the return and exchange policy for the cell?
A: The cell is a precision electronic component, and no return or exchange is available for non-quality issues. If there are quality problems such as unqualified capacity and abnormal internal resistance upon receipt, please provide a test report within 7 days, and we will provide free reissue or refund after verification.
Q0: Does the cell support modular assembly, and is technical support available?
A: The standardized cylindrical design is perfectly suitable for modular assembly. We provide professional technical consultation and one-on-one answers to questions about cell selection, grouping and application.
Why Choose Our IFR46950A 28.3Ah Cell?
– Original Gotion High-Tech Quality
Direct supply from Gotion—one of the top lithium battery manufacturers, with strict full-process quality control and 100% factory inspection for core indicators, ensuring consistent product performance and reliability.
– Superior Core Performance
20.1Ah high capacity, 2500+ long cycle life, -30~60℃ wide temperature adaptation and 839W max pulse discharge power, fully meeting high-demand scenarios for energy storage, power and industrial use.
– Certified High Safety
Complies with GB 38031-2020 and UN38.3-2021 international safety standards, no explosion, fire or leakage under extreme conditions such as overcharge, short circuit and crush, with guaranteed use safety.
– Excellent Storage & Charging Performance
≤3% monthly self-discharge rate, good charge retention for long-term storage; 20mins fast charge (10%-80% SOC @25℃), matching the fast charging needs of various equipment.
– Professional After-Sales & Technical Support
Provide product specification download, one-to-one technical consultation for series-parallel assembly and application matching; timely after-sales response and quality warranty for non-human damage products.
– Stable Supply & Customizable Service
Stable stock and batch supply, support small and large quantity orders; provide professional packaging and international shipping that meets UN38.3 standards, ensuring safe and fast delivery.
