Gotion IFP2814888-28Ah LiFePO4 Rechargeable Battery Cell
Product Introduction
This Gotion IFP2814888-28Ah is a premium prismatic LiFePO4 battery cell designed for automotive and industrial applications, with outstanding safety, stability and long service life. It adopts automotive-grade LFP chemistry and strict manufacturing standards, supporting wide temperature operation and high-power output to meet demanding working conditions.
With excellent consistency and long cycle life, it is highly suitable for PHEV power, energy storage systems, AGVs, backup power and other high-reliability scenarios. This cell provides safe, durable and cost-effective power support for professional system integrators and end users.
Core Selling Point
✅️Genuine Original Automotive-Grade Cell from Guoxuan High-Tech
100% brand-new original factory cell, compliant with automotive-level standards, featuring stable performance and high consistency, no refurbished, no second-hand, no grade-B products.
✅️Ultra-Long Cycle Life for Lower TCO
Up to 4000 cycles at room temperature with 80% capacity retention, 1500 cycles at high temperature, and 8-year calendar life, delivering superior long-term economy.
✅️High-Safety LiFePO4 Chemistry
Passes stringent safety tests including overcharge, over-discharge, external short circuit, crush, heating and temperature cycling, non-flammable and non-explosive for safe use in household, vehicle and energy storage scenarios.
✅️Wide Operating Temperature Range
Discharge temperature: -35℃ to 60℃; Charge temperature: -20℃ to 55℃. High capacity retention at low temperature and stable performance at high temperature, adaptable to global harsh environments.
✅️Low Internal Resistance & High-Power Output
ACR ≤0.65mΩ, DCR ≤1.8mΩ. Supports 10-second peak pulse power output with stable high-current discharge, ideal for high-power equipment and vehicle applications.
✅️Standardized Design for Easy Integration & Assembly
Prismatic aluminum-case structure with precise dimensions, supports series/parallel connection, compatible with standard BMS, mature fixture and installation solutions for fast engineering implementation.
✅️Stable & Sufficient Capacity with Reliable Voltage Platform
Rated 28Ah@1C / 29Ah@0.33C, real capacity labeling, stable voltage platform, ensuring reliable performance for energy storage and vehicle mileage.
✅️Fully Compliant for Global Export
Meets EU RoHS 2.0, EU Battery Directive, GB and IEC international standards, free of hazardous substances, ready for global market sales and customs clearance.
Technical Specifications
| Item | Specification |
| Model | IFP2814888-28Ah |
| Case Material | Aluminum |
| Battery System | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Capacity | 28Ah(1C) / 29Ah(0.33C) |
| Nominal Voltage | 3.15V(1C) / 3.20V(0.33C) |
| Cell Dimensions (D*H) | 21.3±0.9mm × 100.75±0.5mm × 141.88±0.5mm |
| Cycle Life | 4000 cycles |
| Operating Temp (Charge) | -20℃ ~ 55℃ |
| Operating Temp (Discharge) | -35℃ ~ 60℃ |
| Weight | 710g±30g |

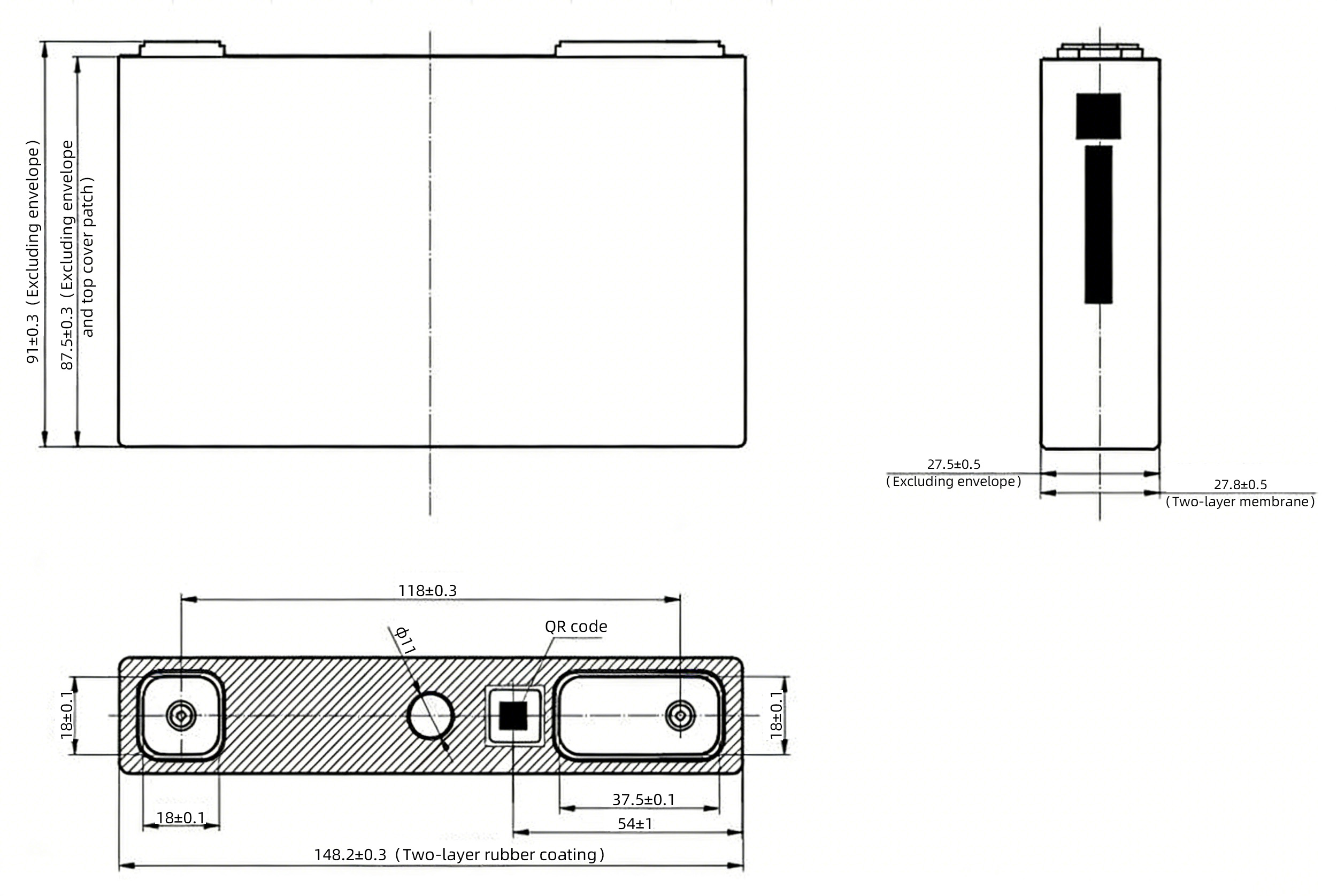

Remark：Thedimensionsareshowninmillimeters（mm）
Application Scenario
Relying on the core advantages of small size, lightweight and high power, this specification is precisely suitable for the following scenarios, covering multiple power/energy storage fields:
-Light electric vehicles: Low-speed electric vehicles, electric scooters, electric bicycles, electric motorcycles, small volume for easy installation, high power to meet power demand
-Portable energy storage equipment: Outdoor portable power supplies, small emergency energy storage boxes, lightweight + fast charging, suitable for outdoor mobile use
-Small industrial/civil equipment: Electric tools, small robots, security backup power supplies, instantaneous high current output, suitable for high-frequency start-stop of equipment
-On-board auxiliary power supply: Car emergency start power supply, on-board low-power energy storage, wide temperature range to adapt to the complex environment inside the car
-Small smart home backup power: Smart door locks, monitoring equipment, small home appliance backup power, high stability to meet long-term floating charge demand
Packaging and Transportation
Packaging：Original anti-static packaging, external carton protection, to avoid mechanical damage during transportation; each cell is marked with a clear bar code for traceability.
Transportation：Complies with UN38.3 transportation standards, strict prohibition of violent loading and unloading, prevent severe vibration, impact and extrusion, avoid sun and rain.
FAQ
Q1: What application scenarios is IFP2814888‑28Ah suitable for?
A1: This cell is mainly designed for PHEV plug‑in hybrid electric vehicles, and can also be widely used in:
Electric vehicle power systems
Home/commercial energy storage systems (ESS)
Industrial backup power & UPS
AGV robots, electric forklifts
Low‑speed electric vehicles & sightseeing cars
Outdoor mobile power & high‑power equipment
Q2: Is this battery safe for household or vehicle mounted use?
A2: Yes. It uses automotive‑grade LiFePO4 chemistry and passes strict safety tests including overcharge, over‑discharge, short circuit, crush, heating and temperature cycle. It will not explode or catch fire under conventional misuse conditions, making it highly safe for vehicle and household energy storage.
Q3: Will the battery get hot during normal use? Is high temperature dangerous?
A3: Slight temperature rise during charging/discharging is normal.
Safe working temperature: ≤60℃
When temperature exceeds 60℃, power will be limited to protect the cell
Continuous high temperature will accelerate aging and affect safety
We recommend equipped with thermal management or ventilation for high‑power scenarios.
Q4: Can I use this battery in high or low temperature environments?
A4: Yes, it has strong adaptability:
Discharge temperature: ‑35℃ ~ 60℃
Charge temperature: ‑20℃ ~ 55℃
At ‑20℃, capacity remains ≥80%
At ‑30℃, capacity remains ≥70%
It can work stably in cold, high‑temperature, outdoor and industrial environments.
Q5: What should I do to ensure safe use?
A5: Safe use rules:
Use with a reliable BMS to avoid overcharge/over‑discharge
Do not short‑circuit positive and negative electrodes
Do not disassemble, puncture, squeeze or throw the battery
Keep away from fire, heat sources and water immersion
Do not mix with different models, old or new batteries
Charge and discharge within the specified voltage and temperature range
Q6: Is it safe to charge this battery for a long time?
A6: Long‑time charging is not safe and will damage the battery.
Standard charging: CC‑CV mode, stop automatically when current drops to 1.4A
Do not charge over 3.65V
Do not keep the battery at 100% SOC for a long time
It is recommended to use a smart charger with BMS automatic stop function
Q7: Can this battery be connected in series and parallel? Is it safe?
A7: Yes, but must follow safety rules:
Use cells with consistent voltage, resistance and capacity
Must use BMS for balance and protection
Do not mix different batches, models or brands
Ensure reliable insulation and firm fixture
Standard series/parallel configuration is safe and reliable.
Q8: What should I do if the battery swells?
A8: Once swelling occurs:
Stop charging/discharging immediately
Place it in a safe, fireproof, ventilated place
Do not use, disassemble or puncture it
Contact us for professional treatment
Swelling is usually caused by overcharge, high temperature or overcurrent.
Q9: Is this battery environmentally friendly and compliant with safety standards?
A9: Yes.
Comply with EU RoHS 2.0, battery directive
Restrict harmful substances: Cd, Pb, Hg, Cr6+, PBB, PBDE, PAEs
Comply with GB/T 31484, GB 38031, IEC62619 and other automotive power battery standards
Non‑toxic, non‑polluting, safe and environmentally friendly
Q10: What should I pay attention to during transportation and storage?
A10:Store in cool, dry, ventilated environment (≤35℃)
Keep SOC at 30%–50%
Avoid vibration, pressure, rain and high temperature
Do not transport with metal, flammable or explosive materials
Maintain insulation to prevent short circuit during transportation
Q11: Can this battery be used in outdoor or waterproof scenarios?
A11: The cell itself does not support waterproofing.
It can be used outdoors only with a protective waterproof casing
Avoid moisture, water immersion, damp and salt fog
Waterproof design can effectively prevent short circuit and corrosion
Q12: What should I do if I accidentally short circuit the battery?
A12:Immediately disconnect the load and charger
Check appearance, temperature and voltage
If overheating, smoking or abnormality occurs, place it in a safe open area
Do not use again; replace the battery to avoid safety risks
Why Choose Our Gotion IFP20100140A-27Ah Battery Cell?
1. Professional Grade for Industrial & Vehicle Integration
We focus on B-end system integration, providing cells optimized for PHEV, energy storage, power equipment, and high‑demand industrial applications. Every parameter strictly follows the official specification, ensuring compatibility with BMS, thermal design, and mechanical structure.
2. Full-Set Engineering Support for Pack Design
We provide professional guidance including:
– Charge/discharge curve & SOC-OCV data.
-BMS protection threshold configuration.
-Module assembly pressure & fixture design.
-Thermal management & temperature control scheme.
-High-current wiring & insulation solutions.
-Help you reduce R&D costs and shorten launch time.
3. Strict Consistency Control for Series & Parallel Systems
Each batch passes full screening:
-OCV test
-Capacity grading
-ACR & DCR sorting
-Appearance & dimension inspection
-High consistency ensures low imbalance, long system life, and high stability in series‑parallel packs.
4. Verified Safety for High-Reliability Scenarios
Automotive‑grade LFP chemistry + all-around safety design:
-Passed overcharge, short circuit, crush, heating, temperature cycle.
-No explosion, no fire under abuse conditions.
-Suitable for high‑safety scenarios such as vehicle and energy storage.
5. Long Lifetime = Lower Total Cost
Long cycle and calendar life:
-4000 cycles @25℃
-1500 cycles @45℃
-8-year calendar life
-Reduce replacement frequency and improve ROI.
6. Wide Temperature Adaptability for Global Markets
Excellent performance from -35℃ to 60℃, suitable for cold regions, high-temperature workshops, outdoor storage, and vehicle-mounted systems.
7. Full Compliance & Export‑Ready
Compliant with:
-GB/T 31484/31486/38031
-IEC 62619, IEC 62660-2
-EU RoHS 2.0 & Battery Directive
-Support global sales and customs clearance.
8. Stable Supply & Professional After-Sales
Long-term stock, fast delivery, complete technical support. We provide after-sales for usage, integration, testing, and fault analysis to ensure your project runs reliably.
