Gotion IFP20100140A-27Ah 3.2V LiFePO4 High Power Battery Cell
Product Introduction
Gotion official authentic IFP20100140A-27Ah lithium iron phosphate (LiFePO4) battery cell is professionally designed for high-power demand scenarios, with 3.2V nominal voltage, 27.0Ah rated capacity, stable and reliable output.
It supports up to 6C continuous discharge and 8C pulse discharge, with strong instantaneous power output and low internal resistance, perfectly matching high-power load requirements.This cell features ≥2500 long cycle life, ≥10 years calendar life, excellent high and low temperature adaptability, and can work stably in the range of -30℃ to 65℃.
Core Selling Point
✅️ Premium LiFePO4 Chemical System
Adopts high‑safety lithium iron phosphate material, stable structure, non‑flammable, non‑explosive, high thermal stability, ensuring safe operation in complex environments.
✅️ Extreme High Power Output
Supports 6C continuous discharge and 8C pulse discharge, with ultra‑low internal resistance and strong instantaneous power supply, ideal for high‑power load scenarios.
✅️ Ultra‑long Service Life
Offers ≥2500 cycles under 1C/1C conditions and ≥10 years calendar life, greatly reducing replacement frequency and long‑term operating costs.
✅️ Wide Temperature Adaptability
Stable discharge from ‑30℃ to 65℃, reliable charging from ‑10℃ to 60℃, adaptable to cold, hot, and harsh global environments.
✅️ Strict Global Safety Certifications
Passes multiple authoritative certifications including GB, IEC, UL, UN38.3, ensuring compliance with international transportation and application standards.
✅️ High Consistency & Easy Assembly
Standard prismatic aluminum case, stable size, excellent cell consistency, easy to series/parallel connect into battery modules and packs.
✅️ Professional Industrial‑Grade Design
Designed for EV, energy storage, and industrial power, with high reliability, long durability, and strong resistance to vibration and shock.
Technical Specifications
| Item | Specification |
| Model | IFP20100140A-27Ah |
| Case Material | Aluminum |
| Battery System | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Capacity | 27.0Ah |
| Nominal Voltage | 3.2V |
| Cell Dimensions (D*H) | 21.3±0.9mm × 100.75±0.5mm × 141.88±0.5mm |
| Cycle Life | ≥2500 cycles (1C/1C, 80% EOL) |
| Operating Temp (Charge) | -10℃ ~ 60℃ |
| Operating Temp (Discharge) | -35℃ ~ 65℃ |
| Weight | 605g±18g |

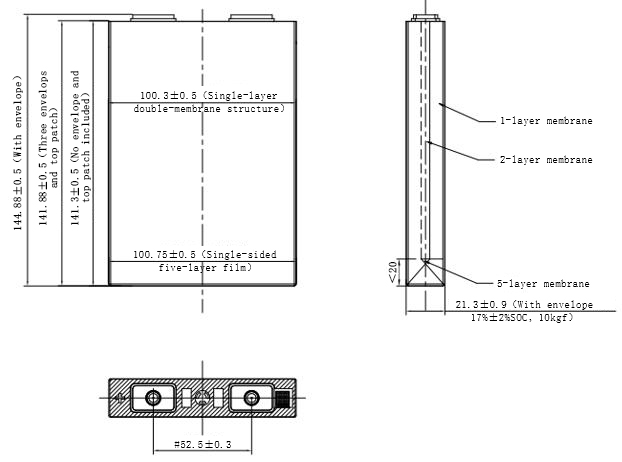

The size of the cell is shown in Figure
Application Scenario
Relying on the core advantages of small size, lightweight and high power, this specification is precisely suitable for the following scenarios, covering multiple power/energy storage fields:
-Light electric vehicles: Low-speed electric vehicles, electric scooters, electric bicycles, electric motorcycles, small volume for easy installation, high power to meet power demand
-Portable energy storage equipment: Outdoor portable power supplies, small emergency energy storage boxes, lightweight + fast charging, suitable for outdoor mobile use
-Small industrial/civil equipment: Electric tools, small robots, security backup power supplies, instantaneous high current output, suitable for high-frequency start-stop of equipment
-On-board auxiliary power supply: Car emergency start power supply, on-board low-power energy storage, wide temperature range to adapt to the complex environment inside the car
-Small smart home backup power: Smart door locks, monitoring equipment, small home appliance backup power, high stability to meet long-term floating charge demand
Packaging and Transportation
Packaging：Original anti-static packaging, external carton protection, to avoid mechanical damage during transportation; each cell is marked with a clear bar code for traceability.
Transportation：Complies with UN38.3 transportation standards, strict prohibition of violent loading and unloading, prevent severe vibration, impact and extrusion, avoid sun and rain.
FAQ
Q: What is the recommended charging voltage for this cell?
A: The standard charging cut‑off voltage is 3.65V. The first‑level protection voltage is 3.9V, and the second‑level protection voltage is 4.0V.
Q: What is the maximum discharge rate of IFP20100140A‑27Ah?
A: It supports 6C continuous discharge and 8C pulse discharge for 10 seconds, with a temperature rise controlled within 30℃.
Q: How long is the cycle life?
A: Under 25℃, 1C/1C charge‑discharge conditions, the cycle life reaches ≥2500 times with capacity remaining ≥80%.
Q: Can this cell be used for energy storage systems?
A: Yes. It is widely used in home energy storage, commercial energy storage, backup power, and other long‑cycle scenarios.
Q: What are the suitable operating temperatures?
A: Charging: ‑10℃ ~ 60℃; Discharging: ‑30℃ ~ 65℃; Optimal operating temperature: 10℃ ~ 35℃.
Q: What certifications does this cell have?
A: It passes GB/T 31485, IEC62619, IEC62133, UL1642, UL1973, UN38.3 and other international safety certifications.
Q: What is the recommended storage condition?
A: Store at ‑40℃ ~ 60℃, relative humidity ≤75%, clean and dry environment. The recommended storage SOC is 17%±2%.
Q: Can I mix different batches of cells?
It is not recommended. The same battery pack should use cells from no more than 3–4 batches, with production time difference within 30 days.
Q: Do you provide technical documents?
A: Yes. We provide full datasheets, test reports, SOC‑OCV tables, cycle curves, and application guidelines.
Q: Is this cell suitable for high‑power applications?
A: Yes. With 6C discharge capability, low internal resistance, and high power density, it is ideal for EV, AGV, and industrial power scenarios.
