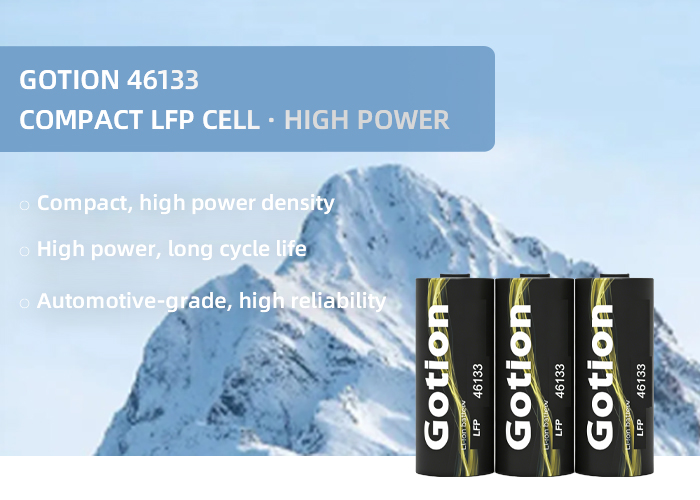

Gotion 46133-27.6Ah LFP Cylindrical Cell, Original Genuine Power & Energy Storage LFP Cell
Product Introduction
Gotion High-tech 46133-27.6Ah LFP cylindrical cell is a standardized cell product suitable for power and energy storage scenarios, with dimensions of 46*133mm and a single weight of 507g. The nominal capacity is 28.0/27.5Ah at 0.33C/1C at room temperature, and the gravimetric/volume energy density reaches 177Wh/kg and 405Wh/L.
The cell features excellent performance, with an operating temperature range of -25~55℃ and 0.7C cold crank at -30℃ low temperature. It has a peak discharge current of 13C and continuous discharge of 5C, with fast charging from 10-80% SOC in only 20 minutes. The cycle life is up to 3000 cycles (SOH≥80%) under 1C/1C charge and discharge, and the capacity recovery rate is 98% at 25℃ and 97% at 45℃ after 30 days of full-charge storage.
Core Selling Point
Technical Specifications
| Item | Specification |
| Model | 46133 cylindrical LFP SPEC |
| Nominal Capacity | 28.0/27.5Ah |
| Nominal Voltage | 3.20/3.15V |
| Cell Dimensions (D*H) | 46*133mm*mm(without terminal) |
| Cycle Life | 3000 cycles |
| Operating Temperature | -25~55℃ |
| Weight | 363g |
Application Scenario
Relying on the core advantages of small size, lightweight and high power, this specification is precisely suitable for the following scenarios, covering multiple power/energy storage fields:
-Light electric vehicles: Low-speed electric vehicles, electric scooters, electric bicycles, electric motorcycles, small volume for easy installation, high power to meet power demand
-Portable energy storage equipment: Outdoor portable power supplies, small emergency energy storage boxes, lightweight + fast charging, suitable for outdoor mobile use
-Small industrial/civil equipment: Electric tools, small robots, security backup power supplies, instantaneous high current output, suitable for high-frequency start-stop of equipment
-On-board auxiliary power supply: Car emergency start power supply, on-board low-power energy storage, wide temperature range to adapt to the complex environment inside the car
-Small smart home backup power: Smart door locks, monitoring equipment, small home appliance backup power, high stability to meet long-term floating charge demand
Packaging and Transportation
Packaging：Original anti-static packaging, external carton protection, to avoid mechanical damage during transportation; each cell is marked with a clear bar code for traceability.
Transportation：Complies with UN38.3 transportation standards, strict prohibition of violent loading and unloading, prevent severe vibration, impact and extrusion, avoid sun and rain.
FAQ
Q1: What is the actual capacity of Gotion 46133-27.6Ah cell?
A: The minimum capacity of the cell is 27.6Ah(@0.33C)/27.1Ah(@1C, RT), and the nominal capacity is 28.0Ah(@0.33C)/27.5Ah(@1C, RT). The capacity of all factory-delivered cells is not lower than the minimum capacity standard, and the cell consistency reaches more than 98%.
Q2: What is the fast charge time of this cell and what rate of fast charge is supported?
A: The fast charge time of the cell from 10% to 80% SOC is 20 minutes, which is adapted to the mainstream fast charge solutions in the industry and can meet the rapid energy supplement demand of power equipment.
Q3: The weight of 46133-27.6Ah cell is 507g, what should be noted during integration?
A: The single cell weighs 507g with a size of 46133mm (without terminal). When integrating the battery pack, it is necessary to reserve the terminal installation space, and the standardized module design can be carried out according to the cell weight and size. We can provide free integration technical suggestions.
Q4: How is the 3000-cycle life of this cell tested?
A: The cycle life is tested according to the standard of 1C constant current charging and 1C constant current discharging. At room temperature, the number of cycles is not less than 3000 when the cell capacity retention rate (SOH) ≥80%, which complies with the general cycle life test standard of the lithium battery industry.
Q5: Has the cell passed safety certification and what inspection reports are supported?
A: This cell has passed the national standard GB38031-2020 and international UN38.3 safety certification. We can provide the certification certificate and factory inspection report issued by the original factory. If third-party testing is needed, we can assist customers to complete the relevant testing process.
Q6: What is the usage effect of this cell in low temperature environment?
A: The operating temperature of the cell is as low as -25℃. In the -30℃ low temperature cold crank test, 0.7C discharge for 2s3 times can be achieved at 10% SOC, which can meet the usage requirements of power and energy storage equipment in low temperature areas in the north.
Q7: What is the delivery cycle after purchase and is sampling supported?
A: Small-batch sampling (1-100 pcs) is shipped on the same day from stock; large-batch procurement (1000 pcs and above) has a delivery cycle of 3-7 working days according to the order quantity; free sampling is supported (freight borne by the customer), allowing customers to test before purchase.
Q8: What are the storage requirements of the cell and will full charge storage have an impact?
A: The cell is recommended to be stored in a dry and ventilated environment at 0-35℃. Stored at full charge (100% SOC) for 30 days, the capacity recovery rate is 98% at 25℃ and 97% at 45℃ with extremely low storage loss. There is no need to worry about short-term full charge storage.
Why Choose Our Gotion 46133 cylindrical LFP SPEC ?
1. Original Factory Brand Guarantee, Strong Technical Strength
We are an officially authorized channel of Gotion High-tech. As a leading domestic lithium battery enterprise, Gotion High-tech’s Institute of Frontier Tech has core R&D capabilities. All cell products are produced by the original factory production line with strict quality control, rejecting refurbished/non-standard cells.
2. In-stock Supply of All Specifications, Customized Services
For the 46133-27.6Ah LFP cell, we have regular in-stock supply, supporting small-batch sampling and large-batch procurement; we can provide supporting technical suggestions for cells according to customers’ battery pack integration needs to meet customized integration requirements.
3. Comprehensive Quality Control and Testing
We provide factory inspection reports for each batch of cells, including core parameters such as capacity, voltage and internal resistance, to ensure cell consistency; we support customers to inspect goods on site with a fully transparent quality control process.
4. Professional Technical Support and After-sales Service
Equipped with a professional lithium battery technical team to provide customers with technical consulting such as battery pack integration and cell matching; the cell products are provided with original factory warranty, and in case of non-human quality problems, we will assist in return, exchange and after-sales processing throughout the process.
5. High Cost Performance, Advantages of Long-term Cooperation
The factory direct supply model eliminates intermediate links and benefits users; for long-term cooperative customers, we provide tiered price discounts and priority supply rights to ensure the stability of customers’ supply chains.
