Why Choose a 5kW Off-grid Household Solar Energy System?
✅ A 5kW off-grid household solar energy system with reasonable energy storage can cover daily electricity consumption such as lighting, home appliances, and kitchen appliances.
✅ It not only avoids the shortage of power supply for low-power (3kW and below) systems, but also eliminates the redundancy cost of high-power (10kW and above) systems, which fits the scale of power consumption in most households.
✅ For remote areas and rural areas without grid coverage, achieve “spontaneous self-use” and completely solve the problem of electricity consumption.

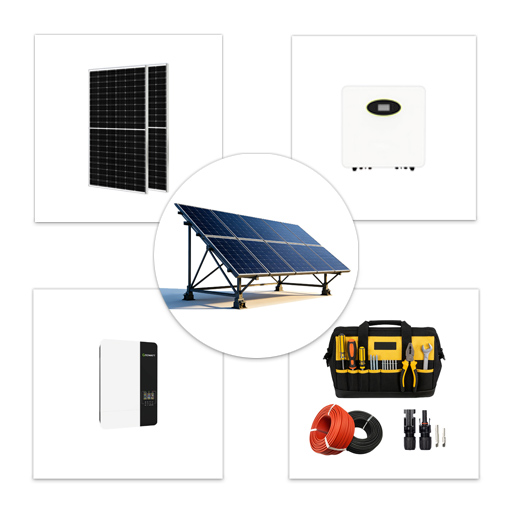

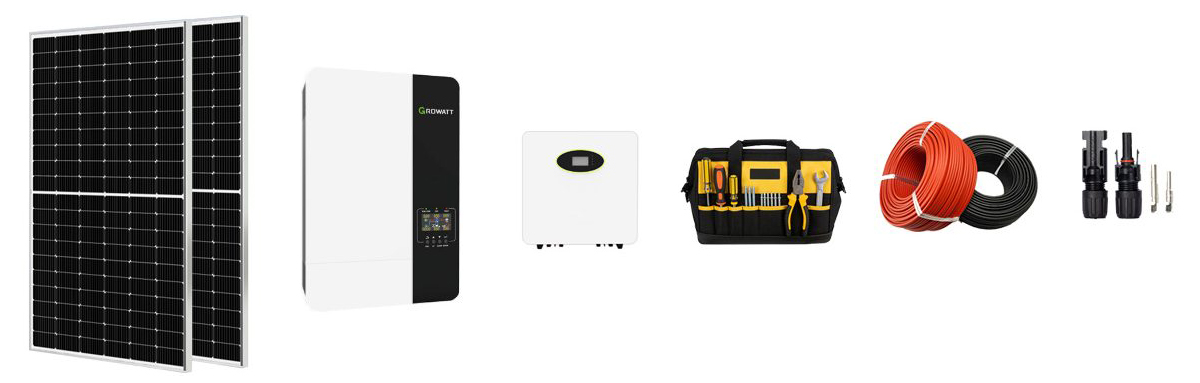

Standard Configuration List
| No. | Item | Description | Quantity |
| 1 | Solar Panel | 550W | 9 pieces |
| 2 | Off-grid Inverter Control Machine | SPF5000ES | 1 unit |
| 3 | Lithium Battery | 51.2V 200Ah | 1 unit |

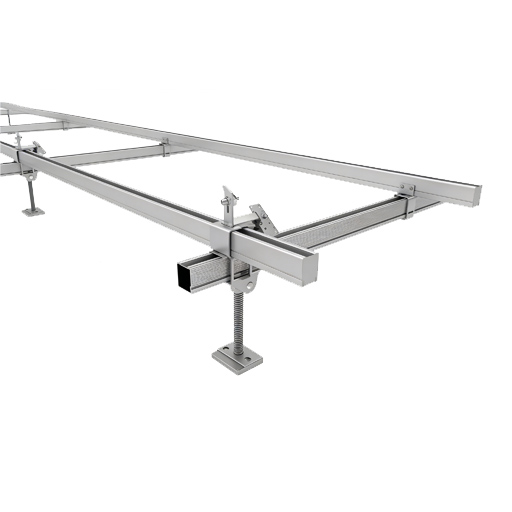

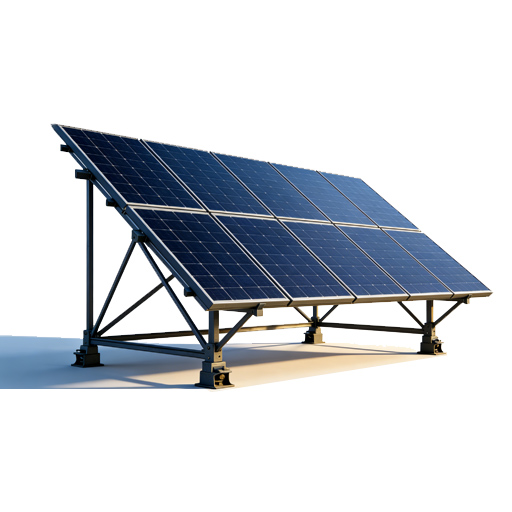

| 4 | Solar Mounting System | Aluminum alloy | 1 set |

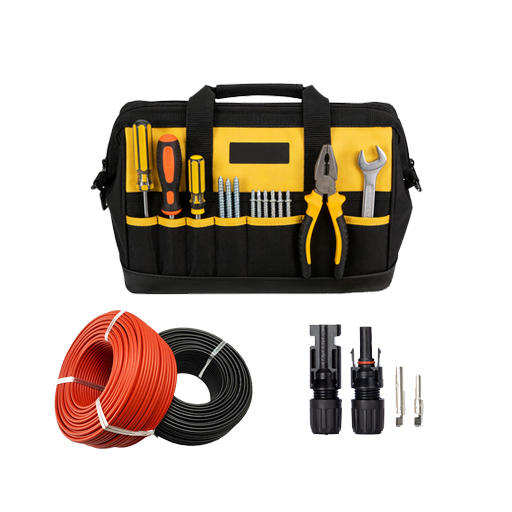

| 5 | PV Cable | 4mm² | 2 rolls |
| 6 | Solar Connector | MC4 | 4 sets |
PS:Actual Rated Power: 4950W (Rated as 5kW for industry standard).
Features

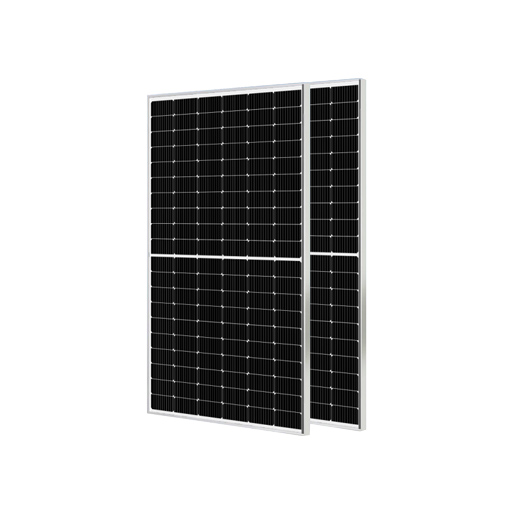

Solar Panel:Neutral brand; Class A monocrystalline solar panels;25 years of performance and quality assurance.

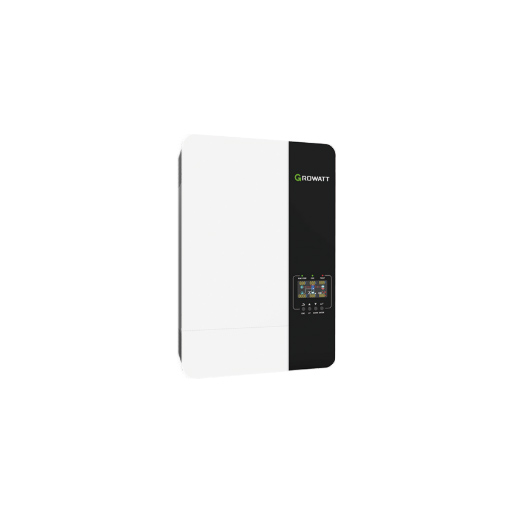

Off-grid Inverter Control Machine:Off-grid 5kW inverter;single phase 240V + GPRS.
Solar Connector:With German TUV certification, photovoltaic cable connection terminals.
PV Cable:Solar dedicated DC cable, 100 meters each in red/black (100 meters in one roll).

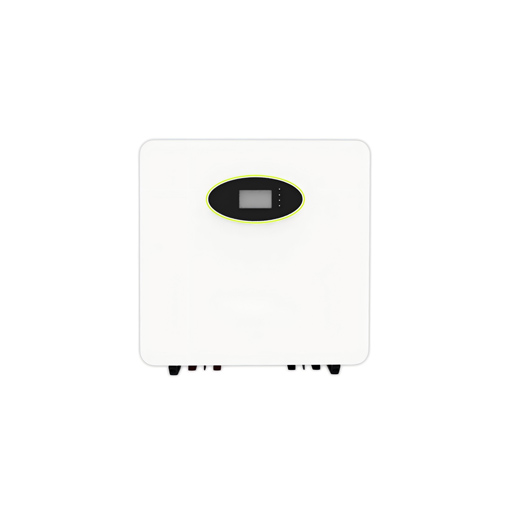

Lithium Battery:Quality assurance 5 years; maximum charge and discharge current 100A;High-performance lithium battery, 10kWh Capacity Lithium Battery(10.24kWh Lithium Battery rated 10kWh for daily reference).
Custom upgrade packs
Basic Upgrade:The battery capacity has been expanded to 20.48 kWh.Suitable for cold-weather areas in Europe and households with high energy consumption.
Pro Upgrade:20.48 kWh battery + solar tracking frame (increases power generation by 30%) + anti-salt spray coating.Suitable for island guesthouses in Southern Europe / Greece / Croatia.
Premium Upgrade:30.72 kWh battery + solar tracking bracket + small charging station (7kW) + remote monitoring screen.Suitable for smart home households and high-end campsites that pursue “self-sufficiency”.

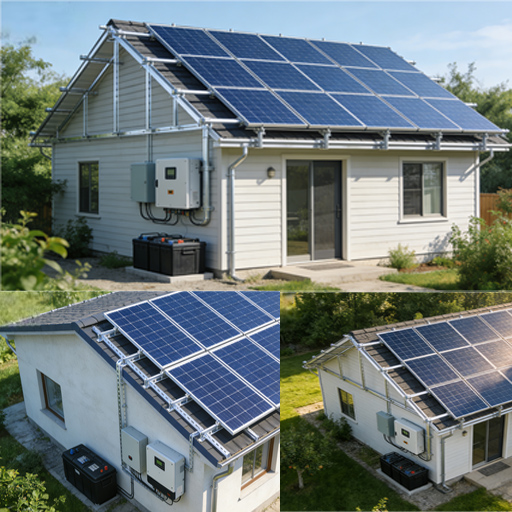

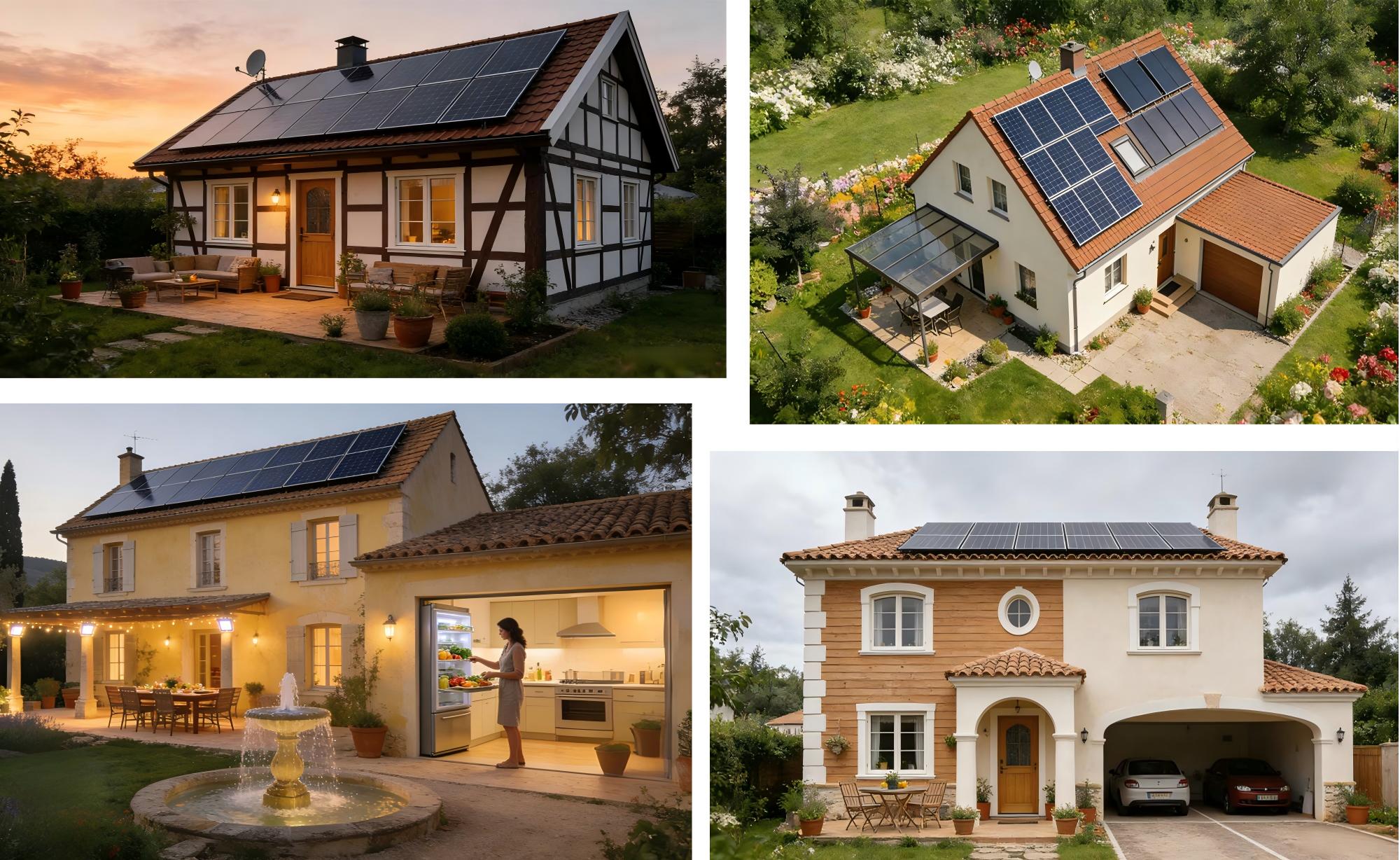

Applicable Scenario
Independent power supply homes for rural multi-population families. There are a large number of rural single-family houses in Europe that are far away from the urban power grid, especially for families of 3-4 people. The daily electricity consumption covers refrigerators, washing machines, dishwashers, electric ovens, and small heat pumps for heating/cooling. The power generation and energy storage matching of the 5kW system just meet the full scene electricity consumption of such families.
For people who pursue a “self-sufficient” lifestyle, the 5kW off-grid system can be matched with smart home equipment to achieve power autonomy, while meeting the low-carbon environmental protection requirements of the European Union, without relying on high rural power grid access costs.
Household emergency backup and temporary power supply after disasters. Parts of Europe are vulnerable to extreme weather such as blizzards and cold waves in winter, resulting in mains power outages for several days. The 5kW off-grid system is equipped with a dual-mode inverter, which can stand by when the mains power is normal and automatically switch power supply when the mains power is interrupted. It guarantees the core power consumption of heating equipment, refrigerators, security systems, and communication equipment to avoid inconvenience in life.
In addition, in temporary resettlement sites after disasters such as floods and mountain fires, the 5kW system can be quickly deployed to provide stable power for temporary housing, medical assistance points, and material distribution points, helping to provide emergency support after disasters.
Small and medium-sized holiday homes in mountains and islands, the Alps, the Pyrenees, and niche islands in Greece, Croatia, and Spain are popular holiday destinations in Europe, but the city power coverage is weak and the access cost is extremely high. Mountain B & B: The 5kW off-grid household solar energy system can support the lighting, heating, and hot water supply of 2-3 rooms, and can also drive ski equipment charging cabinets and small kitchen appliances to meet the needs of tourists for vacation, and the quiet and clean characteristics will not damage the mountain ecological environment
Island B & B/Fisherman’s Cabin: In addition to daily accommodation electricity, it can also drive small seawater desalination equipment and fishery refrigerators to solve the core pain points of island freshwater shortage and seafood preservation, which is in line with the positioning of island eco-tourism.
Return On Investment Simulation (Germany as an example)
| Project | Numerical value |
| System cost (including installation) | ≈€10,120 |
| Annual power generation | ≈5,714 kWh |
| Personal use ratio | 60% |
| Ratio of surplus electricity fed into the grid | 40% |
| Annual electricity savings (for personal use) | ≈€1,029 |
| Annual Internet revenue | ≈€229(this system can be flexibly switched and the grid connection function is an optional configuration) |
| Total annual revenue | ≈€1,258 |
| Payback cycle | ≈8–10 years |
| 25 year net income | ≈€21,300+ (Excluding electricity price increases) |
PS:The above data is for reference only, and should actually be based on factors such as the environment, electricity prices, and national policy subsidies.Grid feed-in is an optional configuration for the off-grid system, the standard version is pure off-grid for independent power supply.
Customer Testimonial
FAQ
Q1: What are the essential differences between an off-grid solar energy system and a grid-connected system?
A: The core difference lies in the degree of grid dependence: the grid-connected system needs to be connected to the public grid, with power generation priority for self-use and surplus electricity connected to the Internet; the off-grid system is completely independent, relying on photovoltaic + energy storage closed-loop power supply, and requires backup power to cope with extreme weather.
Q2: Can a 5kW off-grid solar energy system meet the electricity demand of an average European household?
A: Conventional coverage: average daily power generation of 15-28kWh (the highest in southern Europe), which can meet the basic electricity consumption of a family of 4 (including refrigerators, lighting, washing machines). If you bring 2 air conditioners, you need to match more than 18kWh batteries.
Q3:How long can the battery last on a rainy day?
A: The duration of continuous power supply depends on the battery capacity and actual power consumption. Taking a 10kWh lithium-ion battery as an example:
-
- Low power consumption (only basic loads: lighting, refrigerator, router): Can last 2 – 3 days.
- Medium power consumption (adding TV, washing machine): Can last 1 – 2 days.
- High power consumption (using air conditioner simultaneously): Can last 0.5 – 1 day.
Q4: What are the requirements for installing a 5kW off-grid household solar energy system on the roof?
A:Orientation: The northern hemisphere gives priority to the positive south, and the power generation will be reduced by 10% – 25% when installed in the east/west direction; Load-bearing: The concrete roof needs to meet the load-bearing capacity of ≥ 18 – 20kg/m2, and the color steel tile roof needs to reinforce the bracket fixing point to prevent strong wind from overturning; No occlusion: The installation area needs to avoid trees, high-rise buildings and other occlusions to ensure at least 4 hours of effective light every day; Waterproofing: The contact parts between the bracket and the roof need to be waterproof to avoid water leakage.
Q5:Do I need to go through the formalities to install a 5kW off-grid household solar energy system?
A:The 5kW off-grid household solar energy system is not connected to the public power grid, and most areas do not need to go to the power department for grid connection filing. But there are two points to note:
If exported to Europe, North America and other markets, photovoltaic modules and inverters need to have CE, TÜV, UL and other certifications;
Rooftop installation needs to comply with local building safety codes, and some areas need to report the installation plan to the housing construction or urban management department.
Q6:What do you need to do for daily maintenance?
A:Solar panels: clean up surface dust, fallen leaves, and bird droppings once a month (the frequency can be reduced in areas with a lot of rain) to avoid occlusion affecting power generation; inverters: regularly check the operating parameters of the display screen to ensure that there is no fault alarm, maintain ventilation and heat dissipation; batteries: lead-acid batteries check the electrolyte level and terminals every quarter for oxidation; lithium batteries are automatically managed by BMS without manual operation; find a professional to do a comprehensive inspection every year, including component power testing, line insulation testing, and battery capacity testing.
Q7:What is the reason for the sudden drop in the power generation of the system?
A:Common reasons and investigation methods: there is serious occlusion or dust accumulation on the surface of the solar panel → observe whether the power generation is restored after cleaning; inverter failure or abnormal MPPT parameters → reset parameters according to the instructions, or contact after-sales maintenance; the battery is close to full power → the charging power will automatically decrease, which is a normal phenomenon; the wiring of the component is loose or the fuse of the bus box is blown → check the wiring and fuse after power failure.
Q8:How long is the service life of each component of the system?
A:Solar modules: manufacturer quality assurance for 25 years, power attenuation rate ≤ 20%, the actual service life can reach more than 30 years; off-grid inverters: service life of 10-15 years, the core is power modules and capacitors, need to avoid high temperature environment; battery: lead acid 3-5 years, lithium iron phosphate 6-10 years, after expiration need to be replaced as a whole; brackets, cables: life 15-20 years, need to be regularly checked for rust prevention and aging.
