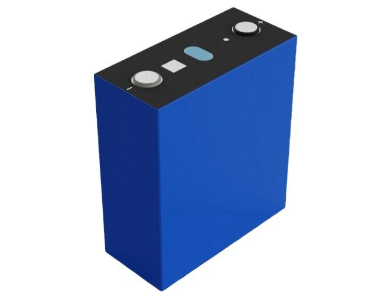

Why Choose This 230Ah Lithium-ion Battery?
In the field of new energy energy storage and power, battery safety and lifespan are the most concerned pain points for users. The 3.2V 230Ah Lithium-ion rechargeable battery, with its long cycle life, multiple safety protection (overcharge/overdischarge/short circuit protection) and wide temperature range working ability (-30 °C to 60 °C), has become an ideal choice for home energy storage, power tools, outdoor power supply and other scenarios.
✅ Only lead-acid, 1/4 weight: 4.2kg extremely lightweight, no pressure for transporting in a caravan / outdoor or installing.
✅ 6000 cycles: 8-10 years without replacement, long-term usage cost reduced by 80%.
✅ IP65 dust and water resistance: Direct installation outdoors / seaside, no need for additional waterproof box.
✅ 1C fast charging: Fully charged in 1.2 hours, no waiting for power supply in a caravan / camping.
Product Features
- Nominal Voltage: 3.2V (Typical); 3.19V (0.33C); 3.13V (1C)(Actual working value).(C represents the battery rate, and the larger the value, the faster the charging and discharging speed.)
- Capacity:230Ah, providing high energy output for extended use.
- Chemistry:Lithium ion rechargeable battery.
- Cycle Life:High Temperature Cycle Life,3000 cycles;Room Temperature Cycle Life,6000 cycles;Calendar Life,10 years.
- Wide Operating Temperature:Optimum working Temperature,10～35 ℃;Charge temperature range,0～60 ℃;Discharge temperature range,-30～60 ℃.
- Safety Standards: Built-in protections against overcharging, short circuits, and overheating.Passed overcharge/overdischarge/short circuit/crushing/heating tests: No explosion, no fire, no leakage.
- Charge & Discharge Rate: Max Charge Rate 1C (230A), Max Continuous Discharge Rate 2C (460A), Max Pulse Discharge Rate 5C (1150A, ≤10s).
- Internal Resistance: ≤35 mΩ (at 25℃, full charge state).
- BMS Protection Thresholds:Overcharge Protection: 3.65V/cell;Over-discharge Protection: 2.0V/cell;Over-current Protection: 500A (continuous), 1200A (pulse);Over-temperature Protection: Charge ≤60℃, Discharge ≤65℃.
-
Certification Details: UN38.3, CE, FCC, RoHS.
- ACR: 0.2mΩ~0.3mΩ (25℃±2℃) ; DCR: <0.8mΩ (50% SOC@3C30S) ; Recommended Charge: 115A (CC) + 3.65V (CV).(The lower the internal resistance is, the higher the charging and discharging efficiency will be, and the less energy loss will occur.)
Product Advantage
- Eco-Friendly: Free from heavy metals and toxic substances, aligning with environmental regulations.
- High Energy Density: Maximizes power delivery while maintaining a compact design.
- Long-Lasting: Capable of sustaining high performance across years of consistent use.
- Fast Charging: Reduces downtime and enhances productivity.
- Complies with RoHS 2.0: Cadmium≤20PPM, Lead≤40PPM, Mercury≤5PPM.
Perfect for Every Scenario
This battery isn’t just a power source—it’s a solution tailored to your lifestyle:
– RV/Camping: Power your microwave, air conditioner, lights, and phone chargers during cross-country trips. Install it anywhere (no acid leakage risk!) and enjoy silent, maintenance-free power .
– Solar Off-Grid Systems: Store excess solar energy for nighttime use, reducing reliance on the grid and lowering electricity bills. Works seamlessly with most solar inverters.
– Marine Boats: With IP65 dust and water resistance , it withstands saltwater corrosion and rough waves—keep your navigation tools, fish finders, and cabin appliances running smoothly.
– Backup Power: Ensure your home or small business stays operational during blackouts—powers fridges, medical devices, and office equipment for hours.
– Industrial & Commercial: Ideal for electric tools, monitoring systems, and telecom base stations—handles high-demand discharge and frequent charging without performance drop .
| Comparison Dimension | IFP54173205-230Ah | Percussion lead-acid batteries of the same capacity (industry standard level) | Core Strengths and Key Features |
| Capacity Performance | Rated capacity: 230Ah. Discharge capacity retention rate at 0.33C ≥ 98%. Capacity at -30℃: ≥ 70%. | Rated capacity: 230Ah. The discharge capacity retention rate at 0.33C is ≤ 85%. The capacity drops sharply to below 50% below -10℃. | Strong capacity stability and superior adaptability to low temperatures |
| Product Weight | 4200g ± 50g (approximately 4.2kg) | Approximately 15-18 kilograms | The weight is only 1/4 of that of a lead-acid battery, making it easy to install and transport (more convenient for RVs / ships). |
| Cycle Life | At room temperature, 6,000 cycles (capacity retention rate ≥ 80%), calendar life of 10 years | 300 to 500 cycles (with capacity retention rate of ≥ 80%), calendar life of 2 to 3 years | The service life is 12 times that of lead-acid batteries, and the long-term usage cost is lower. |
| Charging Speed | Supports 1C fast charging (230A), and it takes only 1.2 hours to charge from 0% to 100%; supports stepwise temperature-controlled fast charging | Only supports 0.2C slow charging (approximately 46A), and it takes 5-6 hours to charge from 0% to 100%. | The charging efficiency has been increased by 4 times, and the downtime has been significantly reduced. |
| Environmental Protection Performance | No heavy metals, no risk of electrolyte leakage. Compliant with RoHS 2.0 standards and recyclable. | Contains toxic and harmful substances such as lead and sulfuric acid. After being discarded, it is prone to cause soil and water pollution, and the recycling process is very difficult. | Green and environmentally friendly, compliant with overseas environmental protection policies and requirements |
| Maintenance Cost | No professional maintenance is required. Only regular checks of terminal connections (once or twice a year) are necessary. | It is necessary to replenish the electrolyte regularly, clean the terminals to prevent corrosion, and conduct annual maintenance of 2 to 4 times. | The maintenance frequency has been reduced by 80%, resulting in cost savings in terms of labor and consumables. |
Specification
Standard Technical Parameters
| Item | Specification | Condition/Notes |
| Nominal Capacity | 230Ah | standard charge and discharge procedure |
| Nominal Voltage | 3.19V | 0.33C |
| 3.13V | 1C | |
| Discharge Energy | 744Wh | 0.33C |
| 727Wh | 1C | |
| Charge/Discharge Voltage Range | 2.0V～3.65V | T>0 °C |
| 1.8V～3.65V | T≤0°C,Forbid continuous charging | |
| Weight | 4200g ± 50g | / |
| Weight Energy Density | 178Wh/kg | 0.33C |
| Volume Energy Density | 390Wh/L | 0.33C |
Working Temperature Range
| Item | Specification | Condition/Notes |
| Optimum Working Temperature | 10～35 ℃ | / |
| Charge Temperature Range | 0～60 ℃ | Charging current |
| Discharge Temperature Range | -30～60 ℃ | Cell temperature≤60 ℃ |
PS:This specification is provided to customers by HEFEI GUOXUAN HIGH-TECH POWER ENERGY Co. Ltd., describing Lithium ion rechargeable cell properties.

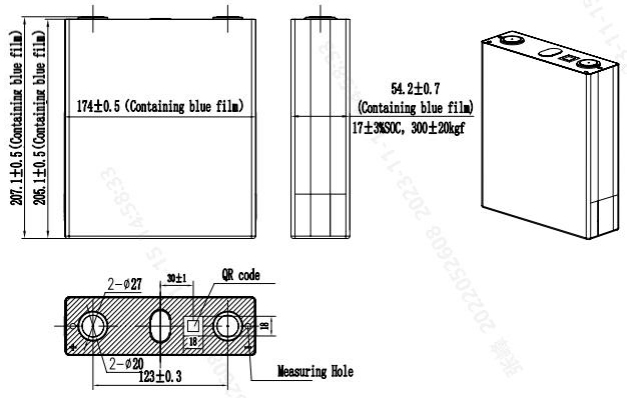

Appearance And Dimensions
Appearance:Without obvious scratches, cracks, rust, discoloration or electrolyte leakage, no other appearance defects affecting cell normal operation.
Thickness：(54.2±0.7)mm（including outer film thickness, 17%±3%SOC, 300±20kgf）
Width：(174±0.5)mm（including outer film thickness）
Height：(205.1±0.5)mm（including outer film thickness and excluding terminals）
(207.1±0.5)mm（including outer film thickness and terminals）
Remark：The dimensions are shown in millimeters (mm)
Notes
✅Warning for using the lithium-ion rechargeable battery. Mishandling of the cell may cause heat, fire and deterioration in performance. Be sure to observe the following.
- When using a device equipped with a battery, refer to the user manual before use.
- Check the orientation of the cathode and anode terminals before packaging.
- The terminal or wire is connected to the battery module, pay attention to the insulation to prevent short circuit.
- Store the battery in a cool dry place (≤35 °C, 30%~50%SOC，Storage ambient humidity < 85% RoHS, no Condensation, charge and discharge once every 3 months ) when not in use for a long time.
- Do not place the battery in direct sunlight or heat source to prevent high temperature of the battery.
- Do not wear metal accessories (such as rings, watches, accessories, etc.) when handling battery units.
- Do not place the battery outside the operating temperature range specified in this document.
⚠️Prohibited Items
- Do not charge more than the maximum charge rate.
- Do not disassemble or modify the battery.
- Do not throw or hit the battery.
- Do not pierce the battery with a sharp object. (eg nails, knives, pens, electric drills).
- Do not mix with other battery or module units.
- Do not use both new and old battery in PACK.
- Do not place the battery at a temperature higher than 60 °C.
- Do not put the battery in a microwave or high pressure container.
- Do not connect the positive and negative terminals with conductive materials. (eg metal, wire).
- Do not allow to wet or immerse the battery in water or sea water.
- Do not use the battery in a manner other than the manufacturer’s written agreement.
Applications
- Renewable Energy Storage:Perfect for solar and wind energy systems, providing effcient and sustainable power storage solutions.
- Electric Vehicles (EV):Suitable for powering electric cars, buses, and other heavy-duty electric vehicles.
- Marine and Recreational Vehicles:ldeal for boats,RVs, and other off-grid mobile systems.
- Industrial Backup Power:Reliable for uninterruptible power supplies (UPS) and critical backup systems.
🔹Solar energy storage solution for household use in Southeast Asia
Core pain points: unstable power grid, high temperature and humidity, no professional maintenance for outdoor installation, high electricity costs.
Product solution: 0 – 60℃ charging / -30 – 60℃ wide temperature discharge + IP65 waterproof + maintenance-free design + 6000 cycles.
User value: Suitable for 35 – 40℃ high temperature in Southeast Asia, direct outdoor installation without maintenance, photovoltaic energy storage for night power supply, significantly reducing reliance on the power grid, 8-year maintenance-free battery replacement.
🔹Solution for RV / camping outdoor power supply
Core pain points: Difficult startup of high-power equipment, heavy battery transportation is tiring, no fast charging outdoors, acid leakage poses safety risks.
Product solution: 4.2kg ultra-light + 5C pulse discharge + 1C fast charging + acid leakage-free design + BMS8 comprehensive protection.
User value: Single person can carry, instant startup of air conditioner / electric drill, 1.2 hours full charge, no safety risk in vehicle installation, all maintenance-free.
🔹Solution for marine / offshore equipment power supply
Core pain points: Salt spray corrosion, ocean waves turbulence, instant equipment startup requirements, high outdoor waterproof requirements.
Product solution: IP65 dust and waterproof + salt spray coating + 5C pulse discharge + BMS overcurrent / overtemperature protection.
User value: Direct installation in the seaside without salt spray, stable power supply in turbulent environments, instant startup of navigation / fish finder, no equipment downtime risk.

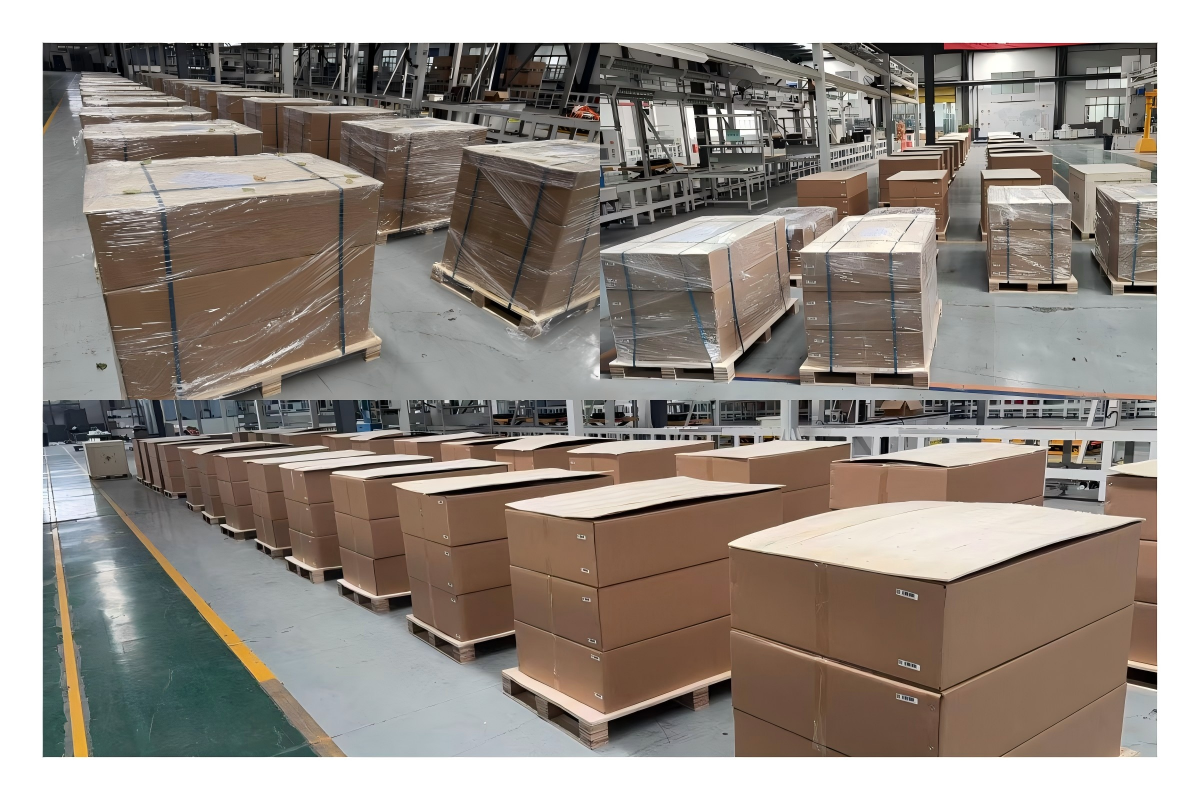

Packaging
Standard packaging: Each single battery is packaged with anti-static bags + foam cushioning + cardboard box, equipped with insulation protection accessories.
Custom packaging: Supports OEM/ODM customization, and packaging specifications can be adjusted according to order requirements.
Logistics compatibility: Supports DHL, air freight, sea freight, etc. of various transportation methods, and the packaging complies with international transportation safety standards.
FAQS
Q1: Can the 230Ah lithium battery module be installed outdoors? Do I need waterproof and dustproof treatment?
A: The battery module has an IP65 waterproof and dustproof rating, which can be directly installed outdoors; it is only necessary to avoid long-term soaking in water (such as heavy rain ponding), and no additional waterproof and dustproof measures are needed, which is suitable for the outdoor installation of Southeast Asian photovoltaic systems.
Q2: Is the 230Ah lithium battery easy to install? Does it provide an installation manual?
A: The installation is simple and no professional skills are needed; we provide a multi-language installation manual (Chinese/English/Thai/Malay/Indonesian) with detailed wiring diagrams and operation steps, and also provide online installation guidance if needed.
Q3: Does the 230Ah lithium battery need daily maintenance? What maintenance is required?
A: No daily professional maintenance is needed; just regularly check the battery connection terminals (ensure no loose, rusty), keep the battery surface clean and dry, and avoid heavy pressure and collision on the battery casing.
Q4: What should be noted for the long-term storage of the 230Ah lithium battery?
A: Store the battery in a cool, dry and ventilated place (temperature 10 ℃~30 ℃), with the remaining capacity kept at 30%~50%; charge the battery to 30%~50% every 3 months for long-term storage, and avoid storing it in high temperature, humid or direct sunlight environment.
Q5: What safety protection functions does the 230Ah lithium battery have?
A: The battery is built-in with a high-performance BMS battery management system, which has 8 major protection functions: overcharge, over-discharge, over-current, over-temperature, short circuit, reverse connection, undervoltage and overvoltage, to ensure safe use in all scenarios.
Why Choose Us?
– OEM/ODM Service: Customize colors and specifications to match your business needs .
– Global Compliance: Meets UN38.3, CE, FCC, and RoHS standards—easy to ship and sell in North America, Europe, Australia, and beyond .
–Newly added RoHS 2.0 prohibited substance limit table (such as cadmium ≤ 20PPM, lead ≤ 40PPM), in line with EU 2015/863, 2006-66-EC directives.
– Proven Reliability: Trusted by 10,000+ customers worldwide for camping, boating, and off-grid living. Read their reviews below!
“I installed this 230Ah 3.2V Lithium-ion Rechargeable Battery in my RV for a 3-month road trip across the US—never ran out of power, even with the AC on all night. So much lighter than my old lead-acid battery, and the BMS gives me peace of mind.” — Mark, California
“Used this 230Ah 3.2V Lithium-ion Rechargeable Battery for my solar off-grid cabin—powers my fridge, lights, and tools for 3 days without sun. The 5000-cycle life means I won’t have to replace it for years.” — Sarah, Ontario
👉 Contact us for custom quotes or technical advice.
Your reliable power partner is just a click away!
